Product Overview

.5" Flex-Loc Pushon Hose 250# W.P.

P/N : 712-338408398

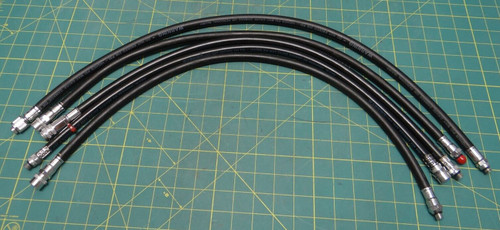

110 feet of black hose; comes with fittings on each end (see pictures).

Flex-Loc™ Push-on is an extremely flexible hose with 250 PSI working pressure is designed for safe and reliable performance in demanding and harsh working conditions. It allows push-on fittings to be inserted into place easily and quickly without the need for special crimping tools. Its tube and cover make it effective for industrial, warehouse and other applications where a convenient push-on hose fitting could be used.

TUBE: Nitrile, ARPM Class A

COVER: Nitrile Blend, ARPM Class A

REINFORCEMENT: 4-Spiral Polyester Yarn
-Easier to Route Assemblies
-Easier to Coil and Handle
-Less Susceptible to Premature Failure than Braided Hose if Subjected to Torque
-Grips the Fitting from the Inside

TEMPERATURE RANGE: -20°F to +180°F, -29°C to +82°C

PRESSURELESS CURE SYSTEM:
-Minimal Cast (Natural Curvature of the Hose)
-Extends the Life of the Rubber Compounds

AIR MANDREL MANUFACTURING PROCESS:
-No Internal Contamination of the Inside Diameter Due to the Lubricant
- Eliminates the Need for Customers to Flush the Hose

PUSH-ON HOSE CONSTRUCTION:
-Allows the Fittings to be Inserted into Place Easily
-No Special Crimping Equipment Required
-Not recommended for fuel line applications

Specifications:
Inner diameter : .5"
Outer diameter : .75"
Bend radius : 3" (min)
Operating pressure : 250.0 psi
Operating temperature : 20 to 180 °F / -29 to 82 °C
Tube material : Nitrile, RMA Class A
Cover material : Nitrile/PVC RMA Class A
Fitting diameters : .5" for smaller fitting, .75" for larger fitting (see pictures for reference)

Total weight : 15 lbs
