Product Overview

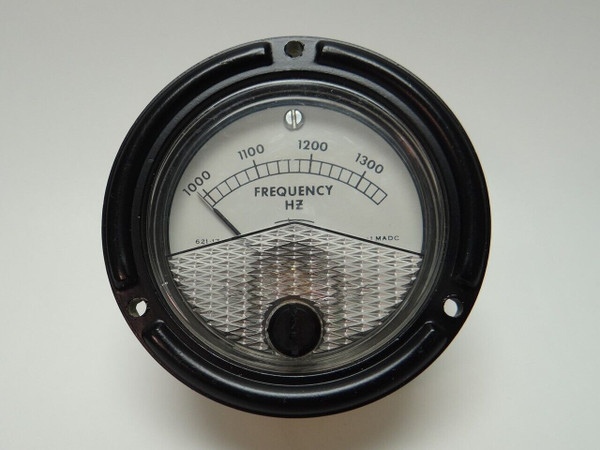

2-1/2" Phaostron Frequency Meter 1000-1300 HZ NSN: 6625-01-042-3263 PN: 2442666
NSN: 6625-01-042-3263
PN: 2442666
-CIRCUIT CURRENT FOR WHICH DESIGNED: DC
-DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS: 3000.0
-OVERALL LENGTH: 2.030 INCHES NOMINAL
-MOUNTING HOLE DIAMETER: 0.125 INCHES NOMINAL
-SCALE DIVISION QUANTITY: 20 SINGLE INDICATOR SINGLE RANGE
-OVERALL DIAMETER: 2.695 INCHES MAXIMUM
-ENVIRONMENTAL PROTECTION: SHOCK RESISTANT AND
-ENVIRONMENTAL PROTECTION: VIBRATION RESISTANT
-MOUNTING BOLT CIRCLE DIAMETER: 2.440 INCHES NOMINAL
-FURNISHED ITEMS AND QUANTITY: TERM. HDW 2
-INDICATOR TYPE: DIAL W/POINTER
-INSTALLATION DESIGN: PANEL
-MOUNTING ARRANGEMENT STYLE: THREE HOLE/STUD BOLT CIRCLE
-SENSITIVITY RATING: 1.0 MILLIAMPERES
-DIAL SCALE MARKING COLOR: BLACK SINGLE INDICATOR SINGLE RANGE
-ACCURACY IN PERCENT: -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
-METER DEPTH BEHIND MOUNTING FLANGE: 1.170 INCHES NOMINAL
-METER BODY DIAMETER BEHIND MOUNTING FLANGE: 2.150 INCHES NOMINAL
-MOVEMENT TYPE: MOVING COIL, PERMANENT MAGNET
-BACKGROUND COLOR: WHITE SINGLE INDICATOR SINGLE RANGE
-POINTER COLOR: BLACK SINGLE INDICATOR SINGLE RANGE
-POWER SOURCE: EXTERNAL
-MOUNTING FACILITY TYPE AND QUANTITY: 3 UNTHREADED HOLE
-SCALE GRADUATION TYPE: LINEAR SINGLE INDICATOR SINGLE RANGE
-MEASUREMENT RANGE: 1000.0 TO 3000.0 HERTZ SINGLE INDICATOR SINGLE RANGE
-SCALE SELECTION METHOD: TERMINAL
-FEATURES PROVIDED: ZERO ADJUSTER
-MOVEMENT SUSPENSION METHOD: JEWEL PIVOT BASE
-CIRCUIT ATTACHMENT METHOD AND QUANTITY: 2 THREADED STUD
-SPECIAL FEATURES: RUGGEDIZED
-SPECIAL MARKINGS: FREQUENCY
-MATERIAL: STEEL
-NUCLEAR HARDNESS CRITICAL FEATURE: NONHARDENED
-SURFACE TREATMENT: ENAMEL
-SPECIAL TEST FEATURES: MEETS MIL-M-10304 REQUIREMENTS
-STYLE DESIGNATOR: ROUND FLUSH MTG
-FSC APPLICATION DATA: TEST SET,ELECT. EQUIP.
New surplus.
NSN: 6625-01-042-3263
PN: 2442666
-CIRCUIT CURRENT FOR WHICH DESIGNED: DC
-DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS: 3000.0
-OVERALL LENGTH: 2.030 INCHES NOMINAL
-MOUNTING HOLE DIAMETER: 0.125 INCHES NOMINAL
-SCALE DIVISION QUANTITY: 20 SINGLE INDICATOR SINGLE RANGE
-OVERALL DIAMETER: 2.695 INCHES MAXIMUM
-ENVIRONMENTAL PROTECTION: SHOCK RESISTANT AND
-ENVIRONMENTAL PROTECTION: VIBRATION RESISTANT
-MOUNTING BOLT CIRCLE DIAMETER: 2.440 INCHES NOMINAL
-FURNISHED ITEMS AND QUANTITY: TERM. HDW 2
-INDICATOR TYPE: DIAL W/POINTER
-INSTALLATION DESIGN: PANEL
-MOUNTING ARRANGEMENT STYLE: THREE HOLE/STUD BOLT CIRCLE
-SENSITIVITY RATING: 1.0 MILLIAMPERES
-DIAL SCALE MARKING COLOR: BLACK SINGLE INDICATOR SINGLE RANGE
-ACCURACY IN PERCENT: -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
-METER DEPTH BEHIND MOUNTING FLANGE: 1.170 INCHES NOMINAL
-METER BODY DIAMETER BEHIND MOUNTING FLANGE: 2.150 INCHES NOMINAL
-MOVEMENT TYPE: MOVING COIL, PERMANENT MAGNET
-BACKGROUND COLOR: WHITE SINGLE INDICATOR SINGLE RANGE
-POINTER COLOR: BLACK SINGLE INDICATOR SINGLE RANGE
-POWER SOURCE: EXTERNAL
-MOUNTING FACILITY TYPE AND QUANTITY: 3 UNTHREADED HOLE
-SCALE GRADUATION TYPE: LINEAR SINGLE INDICATOR SINGLE RANGE
-MEASUREMENT RANGE: 1000.0 TO 3000.0 HERTZ SINGLE INDICATOR SINGLE RANGE
-SCALE SELECTION METHOD: TERMINAL
-FEATURES PROVIDED: ZERO ADJUSTER
-MOVEMENT SUSPENSION METHOD: JEWEL PIVOT BASE
-CIRCUIT ATTACHMENT METHOD AND QUANTITY: 2 THREADED STUD
-SPECIAL FEATURES: RUGGEDIZED
-SPECIAL MARKINGS: FREQUENCY
-MATERIAL: STEEL
-NUCLEAR HARDNESS CRITICAL FEATURE: NONHARDENED
-SURFACE TREATMENT: ENAMEL
-SPECIAL TEST FEATURES: MEETS MIL-M-10304 REQUIREMENTS
-STYLE DESIGNATOR: ROUND FLUSH MTG
-FSC APPLICATION DATA: TEST SET,ELECT. EQUIP.
New surplus.
