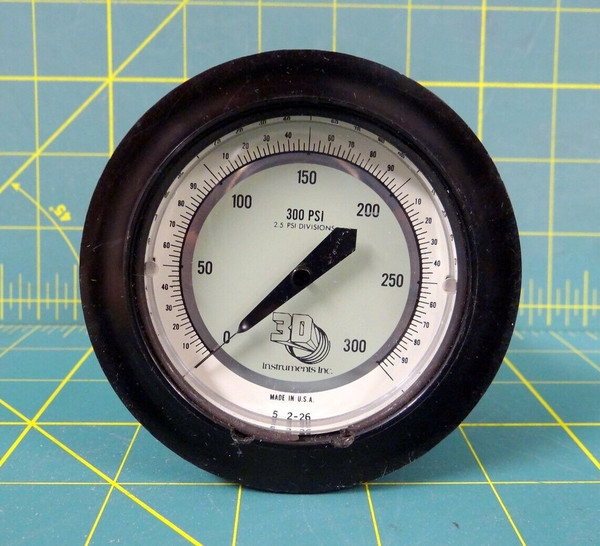

3D Instruments 0-300 PSI Pressure Gauge 2.5 PSI DIVISIONS P/N 25552-26B21

3D Instruments P/N 25552-26B21 PSI Gauge 0-300

Specifications:
Part: 25552-26B21  /  Alt. 25552
NSN: 6685-01-214-2572
Manufacturer: 3D Instruments, Inc. USA

Additional Information:
Overall Depth 2.060 inches nominal
Overall Diameter 3.250 inches nominal
Case Surface Treatment Paint, black
Graduation Unit 50.0 pounds per square inch
Actuation Type Single coil helical bourdon tube
Adjustability Adjustable
Scale Range +0.0 to 300.0 pounds pressure per square inch
Scale Name Pressure
Dial Size 2-1/2 in. dia
Connection Quantity 1
Pointer Color Black
Pointer Type Indicating
Scale Type Single
Scale Smallest Increment 5.0 pounds per square inch
Connection Type External
Mounting Method STUD
Stud Quantity 2
Scale Accuracy Porm 1/2 pct full scale
Actuating Element Material Nickel-chromium-iron alloy, MIL-T-7840
Scale Inscription/Background Color Black markings on white background
Connection Location BACK
Bezel Type Snap-on
Protective Crystal Material Plastic
Connection Size 0.250 in. npt dia
Stud Location BACK
Connector Type Vent Not provided
Surface Treatment Paint, black
