Product Overview

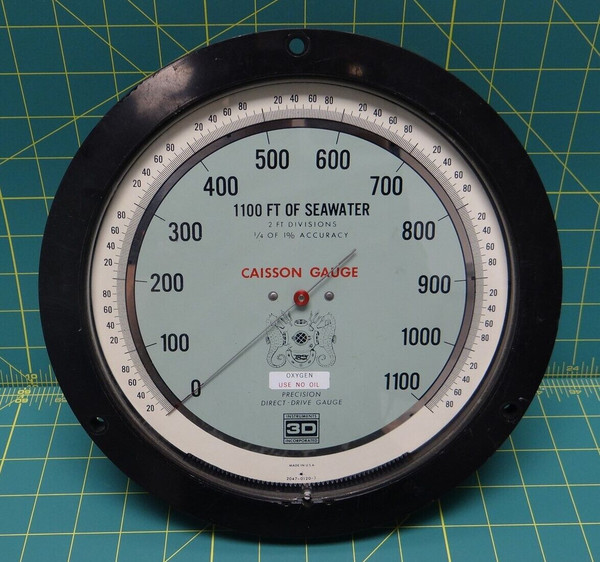

8.5" 3D Inst. 1100 Ft of Seawater Caisson Gauge 25646-27N21-FAK 6685-01-007-6122
PN: 25646-27N21-FAK
NSN: 6685-01-007-6122
CASE MATERIAL: PLASTIC
END ITEM IDENTIFICATION: POSEIDON MATERIAL
GRADUATION UNIT: 100.0 FEET
ACTUATION TYPE: BOURDON TUBE
ADJUSTABILITY: ADJUSTABLE
SCALE RANGE: 0.0 TO 1100.0 FEET OF SEA WATER
SCALE NAME: DIFFERENTIAL PRESSURE
DIAL SIZE: 8-1/2 IN. DIA
CONNECTION QUANTITY: 1
POINTER COLOR: BLACK
POINTER TYPE: INDICATING
SCALE TYPE: SINGLE
SCALE SMALLEST INCREMENT: 20.0 POUNDS PER SQUARE INCH
CONNECTION TYPE: EXTERNAL
SCALE ACCURACY: 1/4 PCT ENTIRE RANGE
ACTUATING ELEMENT MATERIAL: NICKEL-CHROMIUM-IRON ALLOY
SCALE INSCRIPTION/BACKGROUND COLOR: BLACK MARKINGS ON WHITE BACKGROUND CONNECTION LOCATION: BACK, LOWER
BEZEL TYPE: SNAP-ON
PROTECTIVE CRYSTAL MATERIAL: PLASTIC
CONNECTION SIZE: 0.250 IN. NPT
CONNECTOR TYPE VENT: NOT PROVIDED
MATERIAL: STEEL CORROSION RESISTING
SURFACE TREATMENT: ENAMEL
MANUFACTURERS CODE: 52159
DESIGN CONTROL REFERENCE: 25646-27N21FAK
XXQXX07
