Product Overview

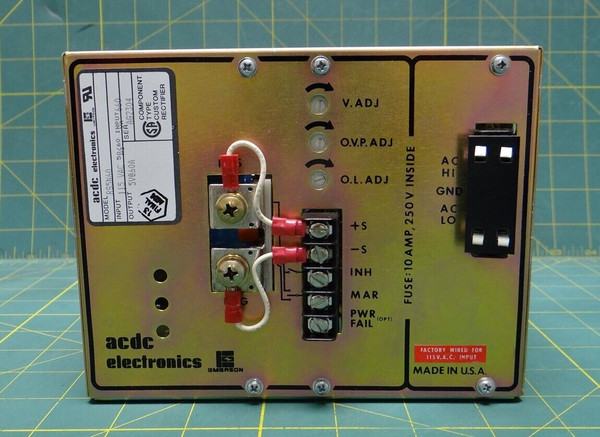

ACDC Electronics RS Series Power Supply RS5N60 115VAC Input 6130-01-105-0105
Model: RS5N60
NSN: 6130-01-105-0105
Input: 115 VAC 50/60 Hz
Output: 5V @ 60A
Overall Width: 6.280 Inches Nominal
Overall Length: 9.550 Inches Nominal
Overall Height: 4.880 Inches Nominal
Rectification Method: Single Phase Full Wave Bridge
Input Voltage Rating: 47.0 Hertz Minimum Single Operating Power RQMT and 63.0 Hertz Maximum Single Operating Power RQMT
Output Voltage Rating: 5.0 DC Volts Nominal Single Power Output
Output Current Rating: 60.0 DC Amperes Nominal Single Power Output
Output Control Type: Voltage Adjustment Single Power Output
Output Control Quantity: 1 Single Power Output
Output Connection Quantity: 2 Single Power Output
Output Connection Type: Terminal Strip Single Power Output
Operating Ambient Temperature Range: 0.1/40.0 Deg Celsius
Features Provided: Filter
Electrical Power Source Relationship: Operating
XXQXX07
Model: RS5N60
NSN: 6130-01-105-0105
Input: 115 VAC 50/60 Hz
Output: 5V @ 60A
Overall Width: 6.280 Inches Nominal
Overall Length: 9.550 Inches Nominal
Overall Height: 4.880 Inches Nominal
Rectification Method: Single Phase Full Wave Bridge
Input Voltage Rating: 47.0 Hertz Minimum Single Operating Power RQMT and 63.0 Hertz Maximum Single Operating Power RQMT
Output Voltage Rating: 5.0 DC Volts Nominal Single Power Output
Output Current Rating: 60.0 DC Amperes Nominal Single Power Output
Output Control Type: Voltage Adjustment Single Power Output
Output Control Quantity: 1 Single Power Output
Output Connection Quantity: 2 Single Power Output
Output Connection Type: Terminal Strip Single Power Output
Operating Ambient Temperature Range: 0.1/40.0 Deg Celsius
Features Provided: Filter
Electrical Power Source Relationship: Operating
XXQXX07
