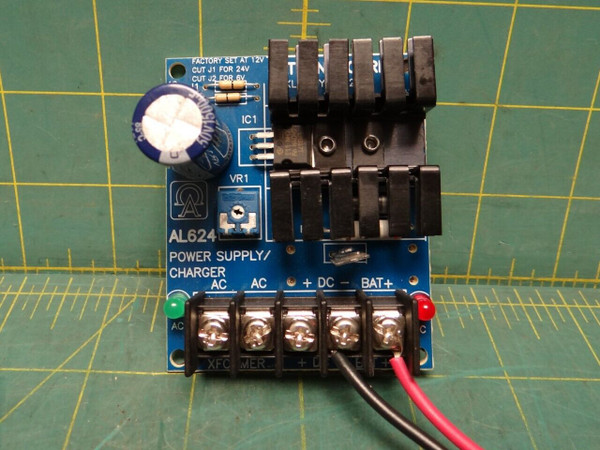

Altronix AL624 Linear Power Supply Charger, Single Output, 6/12/24VDC @ 1.2A

• 16VAC to 24VAC, 20VA to 40VA.

• Switch selectable 6VDC-12VDC-24VDC.
• 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• PTC battery protection.

• AC input and DC output LED indicators.

Electrical

• Temperature:
• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%. BTU/Hr.:
• 6VDC: 4 BTU/Hr.
• 12VDC: 7 BTU/Hr.
• 24VDC: 9 BTU/Hr.
• System AC input VA requirement:
• 16.5VAC/20VA: 138. 16.5VAC/40VA: 276.
• 24VAC/20VA: 92. 24VAC/40VA: 192.05.

Pre-Owned surplus pulled out of working system. See photos for more details.
