| MRC |
Requirements |
Characteristics |
| SFTT |
SURFACE TREATMENT |
PASSIVATE SPINDLE |
| SFTT |
SURFACE TREATMENT |
PASSIVATE SHANK |
| STDC |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION |
QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| STDC |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION |
QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK |

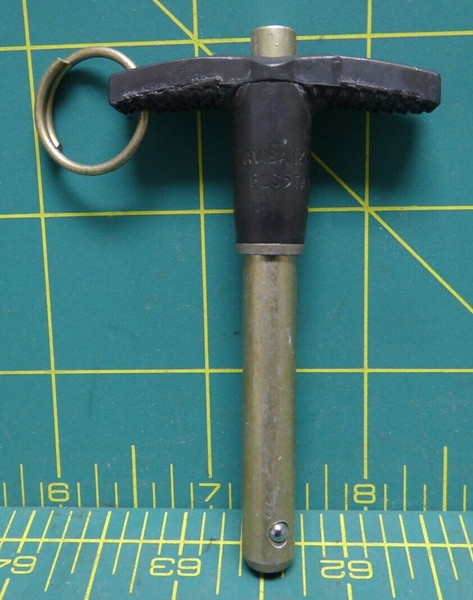

| STYL |
STYLE DESIGNATOR |
T HANDLE |
| CRQD |
SHOULDER TO HEAD END DISTANCE |
1.270 INCHES NOMINAL |
| AAZE |
SHANK DIAMETER |
0.310 INCHES NOMINAL |
| CTDJ |
PIN ATTACHMENT TYPE |
HOOK |
| MDCL |
MATERIAL DOCUMENT AND CLASSIFICATION |
AMS 5643 ASSN STD 1ST MATERIAL RESPONSE SPINDLE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| MDCL |
MATERIAL DOCUMENT AND CLASSIFICATION |
AMS 5643 ASSN STD 1ST MATERIAL RESPONSE SHANK OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK |
| MATT |
MATERIAL |
STEEL COMP 630 SPINDLE OR STEEL COMP 632 SPINDLE |
| MATT |
MATERIAL |
STEEL COMP 630 SHANK OR STEEL COMP 632 SHANK |
| CQFM |
HARDNESS RATING |
40.0 ROCKWELL C MINIMUM OVERALL |
| AASN |
HANDLE LENGTH |
1.782 INCHES NOMINAL |
| ANEE |
GRIP LENGTH |
1.500 INCHES NOMINAL |
| CTXT |
DETENT TO TAPERED END DISTANCE |
0.330 INCHES NOMINAL |
| ABRM |
DETENT QUANTITY |
2 |
| APCM |
ACTUATION TYPE |
PUSH |
| AFLW |
ACTUATION METHOD |
PUSH BUTTON |
