Banner Engineering Safety Light Screen EZ-Screen LP SLPCR14-550P8 83600
M/N: SLPCR14-550P8 EZ-Screen Low Profile Cascade Receiver
P/N: 83600
S/N: H01552741401681111

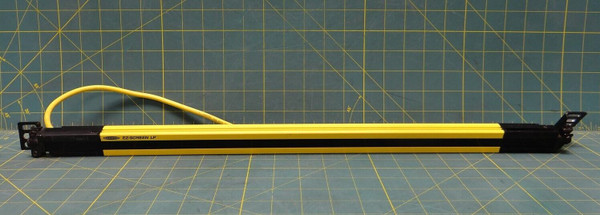

This is a used surplus item in good condition. See photos.
XXQXX07
M/N: SLPCR14-550P8 EZ-Screen Low Profile Cascade Receiver
P/N: 83600
S/N: H01552741401681111
| Type: | Safety Light Curtain Receiver |
| Function-Style: | Low Profile Cascadable |
| Height: | 550 mm 21.7 in |
| Range - Maximum: | 7.0m 23.0 ft |
| Range - Minimum: | 0.1m 0.32 ft |
| Resolution: | 14.0 mm 0.55 in |
| Beams: | 55 Beam |
| Supply Voltage: | 24V DC |
| Output Amperes: | 150 mA |
| Safety Output Ratings: | 2 PNP Trip/Latch |
| Safety Category: | Type 4 |
| Connection: | Receiver - 8 pin, M12 Euro 12 in Pigtails |
| Light Source: | Infrared LED ft s, 850 nm at Peak Emission |
| Response Time: | 16.5 ms |
| Operating Temperature: | 0 to 55 deg C 32 to 131 deg F |
| Enclosure Rating: | IP65 |
| Material: | Extruded Aluminum Yellow Polyester Powder Coated |
| Manufacturer Series: | EZ-Screen LP |
This is a used surplus item in good condition. See photos.
XXQXX07
