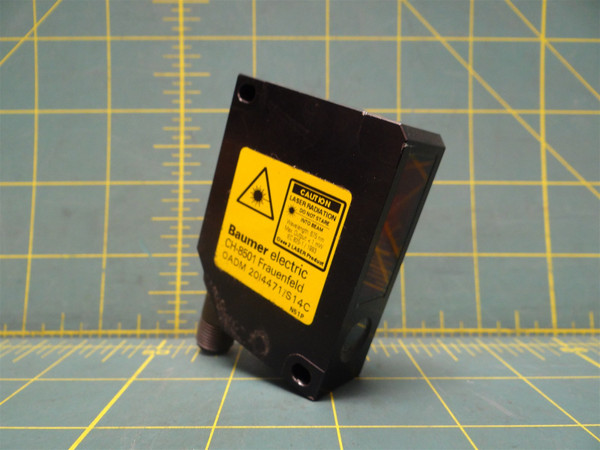

Baumer OADM20I4471/S14C CH-8501 Photoelectric Distance Sensor Lasor Class 2
Details:
-Measuring distance Sd: 100 ... 500 mm
-Adjustment: no
-Power on indication: LED green
-Soiled lens indicator: LED red / LED red blinking
-Resolution: < 0,5 mm
-Linearity error: ± 1,5 mm
-Light source: pulsed red laser diode
-Wave length: 650 nm
-Laser class: 2
-Beam type: point
-Beam diameter: 2 mm
-Response time / release time: < 10 ms
-Voltage supply range: +Vs 12 ... 28 VDC
-Current consumption max.: 120 mA
-Output circuit: analog
-Output signal: 4 ... 20 mA / 0 ... 10 VDC
-Load resistance (analog I): < (+Vs - 6 V) / 0,02 A
-Load resistance (analog U): > 100 kOhm
-Output current: < 100 mA
-Alarm output: PNP
-Short circuit protection: yes
-Reverse polarity protection: yes, Vs to GND
-Width / diameter: 20,6 mm
-Height / length: 65 mm
-Depth: 50 mm
-Type: rectangular
-Housing material: die-cast zinc
-Front (optics): glass
-Connection types: connector M12, 5 pin, rotatable
New surplus in good condition (see photos for details).
