Product Overview

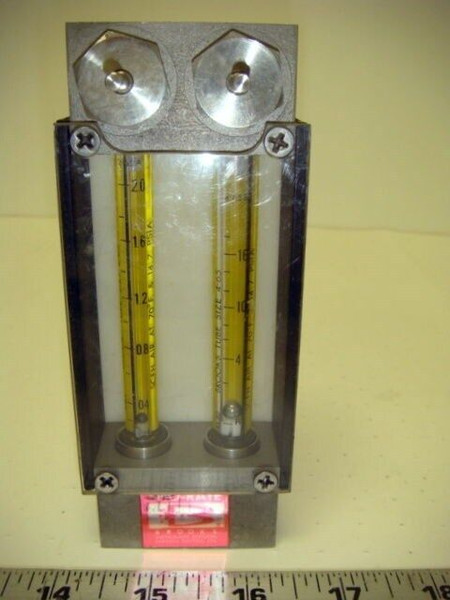

Brooks Instruments Multi-Tube Sho-Rate Flow Meter
Model # 1360
The Sho-Rate Flow meters are variable area, glass tube, flow rate indicating meters. The basic elements are a tapered glass metering tube and a metering float. Features include quick and simple removal or installation of the tube and float while the meter remains in the process piping.
Left tube is size 2-65
Left tube range : 0.4 - 2.0 SCFH air @ 70 degrees F & 14.7 PSIA
Right tube size is 4-65
Right tube range : 4-16 air @ 70 degrees F & 14.7 PSIG
Dimensions : 5 1/2" x 2 1/4" x 2"
Meter has 4 common connections and two areas for dials to be installed if necessary
This item is new surplus with no signs of installation or use
