Product Overview

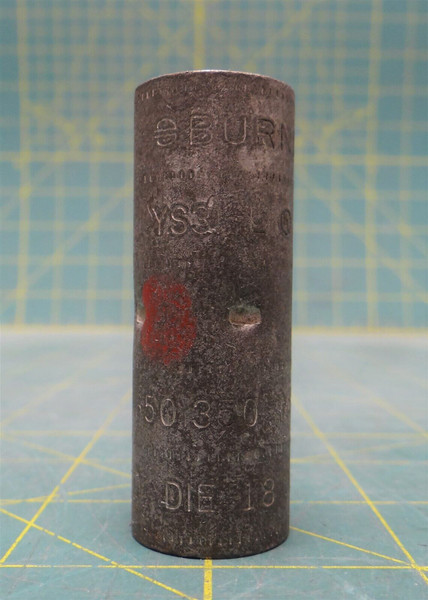

Burndy Hylink YS31-L CU Standard Compression Splice 350 KCMIL Red Die 18 or 234
Color Code: Red
Barrel Type: Standard with Chamfered
Length: 2.6 Inch
Outer Diameter: 0.88 Inch
Body Material: Electro Tin Plated Copper
Approval: UL, CSA
Additional Information: RoHS Compliant; Wire Strip Length 1-3/16 Inch; Die Index 18/324; Temperature Rating 90 Deg C
Catalog Number: YS31L
Brand Name: HYLINK
Model: YS-L
Type: Butt with Center Wire Stop
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Size: 350 KCMIL
Conductor Material: Copper
CATALOG DESCRIPTION: 350 KCMIL CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 18 OR 324 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Butt With Center Wire Stop Type; 2.6 Inch; 0.88 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 350 kcmil Conductor Size; Red Color Code; Standard With Chamfered Barrel Type; HYLINK[TM] Brand; RoHS Compliant; Wire Strip Length 1-3/16 Inch; Die Index 18/324; Temperature Rating 90 Deg C; YS-L Model
Made in USA: Yes
New surplus, see photos for details.
XXQXX10
Color Code: Red
Barrel Type: Standard with Chamfered
Length: 2.6 Inch
Outer Diameter: 0.88 Inch
Body Material: Electro Tin Plated Copper
Approval: UL, CSA
Additional Information: RoHS Compliant; Wire Strip Length 1-3/16 Inch; Die Index 18/324; Temperature Rating 90 Deg C
Catalog Number: YS31L
Brand Name: HYLINK
Model: YS-L
Type: Butt with Center Wire Stop
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Size: 350 KCMIL
Conductor Material: Copper
CATALOG DESCRIPTION: 350 KCMIL CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 18 OR 324 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Butt With Center Wire Stop Type; 2.6 Inch; 0.88 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 350 kcmil Conductor Size; Red Color Code; Standard With Chamfered Barrel Type; HYLINK[TM] Brand; RoHS Compliant; Wire Strip Length 1-3/16 Inch; Die Index 18/324; Temperature Rating 90 Deg C; YS-L Model
Made in USA: Yes
New surplus, see photos for details.
XXQXX10
