P/N : 11-002-061

NSN : 4820-00-627-9176

Comes with a  0 to 160 (0 to 11 bar 100 x kPa) gauge


OUTSIDE SURFACE TREATMENT: ANODIZED
BODY STYLE: STRAIGHT THRU
STEM MATERIAL: BRASS
MEDIA FOR WHICH DESIGNED: AIR
FIRST END CONNECTION TYPE: THREADED INTERNAL PIPE
FIRST END STYLE DESIGNATOR: PLAIN
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR: 1/2-14 NPT
FIRST END THREAD DIRECTION: RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END: IDENTICAL
SEAT MATERIAL: BRASS
FLOW CONTROL DEVICE: DISK, FLAT, TOP AND BOTTOM GUIDED
FLOW CONTROL DEVICE MATERIAL: NON-METALLIC
END CONNECTION QUANTITY: 2
RENEWABLE SEAT RING TYPE: THREADED
OUTLET PRESSURE RANGE: 2.0 TO 125.0 POUNDS PER SQUARE INCH
REGULATION TYPE: 1ST STAGE MANUAL, 2ND STAGE AUTOMATIC
MANUAL CONTROL METHOD: TEE HANDLE
VALVE STEM DESIGN: SINGLE SEAT
VALVE LOADING METHOD: SPRING
MAXIMUM INLET PRESSURE RATING: 400.0 POUNDS PER SQUARE INCH
FILTER: NOT INCLUDED
END ITEM IDENTIFICATION: GRUMMAN AEROSPACE CORP A10 AIRCRAFT
TEMP RATING: 175.0 DEG FAHRENHEIT MAXIMUM
SPECIAL FEATURES: FURNISHED W/TWO INT THD GAUGE PORTS 0.125 NPT AND TWO PIPE PLUGS MATERIAL: ZINC ALLOY BODY
MANUFACTURERS CODE: 43990
DESIGN CONTROL REFERENCE: 11-002-061

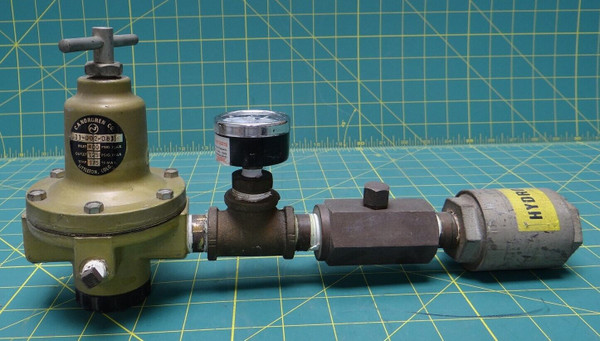

Used surplus item with additional components. The pressure gauge has a cracked window. Please see photos for more.
