Product Overview

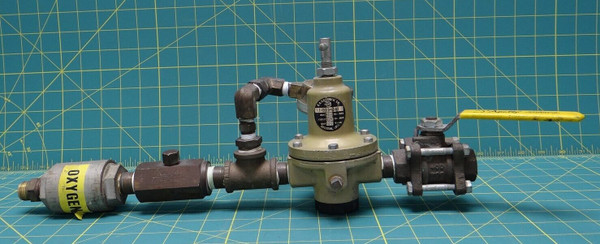

CA Norgren 11-002-061 Fluid Pressure Regulating Valve Assembly, Oxygen, 0-30 PSI
NSN : 4820-00-627-9176
Product Highlights:
TEMPERATURE RATING: 175.0 DEG FAHRENHEIT MAXIMUM
STEM MATERIAL: BRASS
VALVE STEM DESIGN: SINGLE SEAT
VALVE LOADING METHOD: SPRING
SPECIAL FEATURES: FURNISHED W/TWO INT THD GAUGE PORTS 0.125 NPT AND TWO PIPE PLUGS.
OUTSIDE SURFACE TREATMENT: ANODIZED
SECOND END RELATIONSHIP WITH FIRST END: IDENTICAL
SEAT MATERIAL: BRASS
RENEWABLE SEAT RING TYPE: THREADED
REGULATION TYPE: 1ST STAGE MANUAL, 2ND STAGE AUTOMATIC
MANUAL CONTROL METHOD: T-HANDLE
OUTLET PRESSURE RANGE: +2.0/+125.0 POUNDS PER SQUARE INCH
MEDIA FOR WHICH DESIGNED: AIR
MAXIMUM INLET PRESSURE RATING: 400.0 POUNDS PER SQUARE INCH
FLOW CONTROL DEVICE: DISK, FLAT, TOP AND BOTTOM GUIDED FLOW CONTROL DEVICE MATERIAL: NONMETALLIC
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR: 1/2-14 NPT FIRST END THREAD DIRECTION: RIGHT-HAND
FIRST END STYLE DESIGNATOR: PLAIN
FIRST END CONNECTION TYPE: THREADED INTERNAL PIPE
FILTER: NOT INCLUDED
BODY STYLE: STRAIGHT THRU
BODY MATERIAL: ZINC ALLOY
END ITEM IDENTIFICATION: GRUMMAN AEROSPACE CORP A10 AIRCRAFT
END CONNECTION QUANTITY: 2
Comes with a USG 0 to 30 PSI gauge, an Apollo 1/2" valve, check valve, and a flashback flame arrestor.
Used surplus item in good condition. See photos.
XXQXX07
NSN : 4820-00-627-9176
Product Highlights:
TEMPERATURE RATING: 175.0 DEG FAHRENHEIT MAXIMUM
STEM MATERIAL: BRASS
VALVE STEM DESIGN: SINGLE SEAT
VALVE LOADING METHOD: SPRING
SPECIAL FEATURES: FURNISHED W/TWO INT THD GAUGE PORTS 0.125 NPT AND TWO PIPE PLUGS.
OUTSIDE SURFACE TREATMENT: ANODIZED
SECOND END RELATIONSHIP WITH FIRST END: IDENTICAL
SEAT MATERIAL: BRASS
RENEWABLE SEAT RING TYPE: THREADED
REGULATION TYPE: 1ST STAGE MANUAL, 2ND STAGE AUTOMATIC
MANUAL CONTROL METHOD: T-HANDLE
OUTLET PRESSURE RANGE: +2.0/+125.0 POUNDS PER SQUARE INCH
MEDIA FOR WHICH DESIGNED: AIR
MAXIMUM INLET PRESSURE RATING: 400.0 POUNDS PER SQUARE INCH
FLOW CONTROL DEVICE: DISK, FLAT, TOP AND BOTTOM GUIDED FLOW CONTROL DEVICE MATERIAL: NONMETALLIC
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR: 1/2-14 NPT FIRST END THREAD DIRECTION: RIGHT-HAND
FIRST END STYLE DESIGNATOR: PLAIN
FIRST END CONNECTION TYPE: THREADED INTERNAL PIPE
FILTER: NOT INCLUDED
BODY STYLE: STRAIGHT THRU
BODY MATERIAL: ZINC ALLOY
END ITEM IDENTIFICATION: GRUMMAN AEROSPACE CORP A10 AIRCRAFT
END CONNECTION QUANTITY: 2
Comes with a USG 0 to 30 PSI gauge, an Apollo 1/2" valve, check valve, and a flashback flame arrestor.
Used surplus item in good condition. See photos.
XXQXX07
