Product Overview

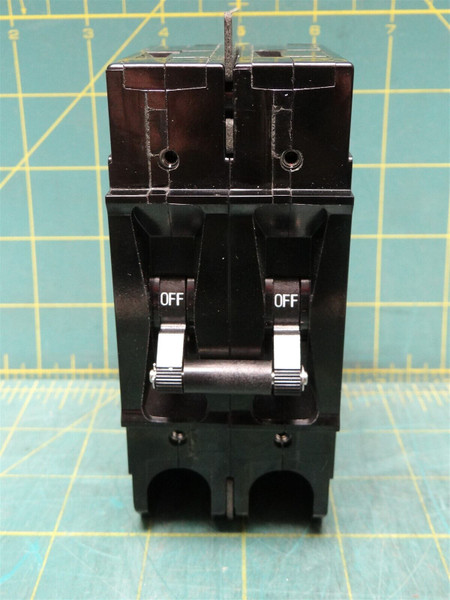

Carling Technologies Hydraulic-Magnetic Circuit Breaker EA2-B0-26-620-1DA-EB
The E-Series hydraulic-magnetic circuit breaker is designed for higher current and voltage applications and qualified, as per agency approval, for branch circuit protection or as a supplementary protector. E-Series breakers are available as a one to six pole configuration and are rated up to 125 amps and 600VAC or 125VDC, with a max IC of 10,000 amps.
Series: E
Actuator: 1 Handle per pole
Poles: 2
Circuit: Series Trip (current)
Auxiliary Switch: Without Auxiliary Switch
Frequency & Delay: 50/60Hz Long
Current Rating: 22
Terminal: Back Connected 10-32 Stud (All Terminals)
Mounting/ Barriers: 6-32
Maximum Application Rating: 277/480VAC, 100A
New surplus. Obtained from a facility that required individual unit testing. Item may show signs of mounting/testing, but is in otherwise new condition. See photos for details.
xxqxx13
The E-Series hydraulic-magnetic circuit breaker is designed for higher current and voltage applications and qualified, as per agency approval, for branch circuit protection or as a supplementary protector. E-Series breakers are available as a one to six pole configuration and are rated up to 125 amps and 600VAC or 125VDC, with a max IC of 10,000 amps.
Series: E
Actuator: 1 Handle per pole
Poles: 2
Circuit: Series Trip (current)
Auxiliary Switch: Without Auxiliary Switch
Frequency & Delay: 50/60Hz Long
Current Rating: 22
Terminal: Back Connected 10-32 Stud (All Terminals)
Mounting/ Barriers: 6-32
Maximum Application Rating: 277/480VAC, 100A
New surplus. Obtained from a facility that required individual unit testing. Item may show signs of mounting/testing, but is in otherwise new condition. See photos for details.
xxqxx13
