Clutch Release Lever for a 5-ton, 6x6 M809 Series Diesel Trucks P/N 7376155

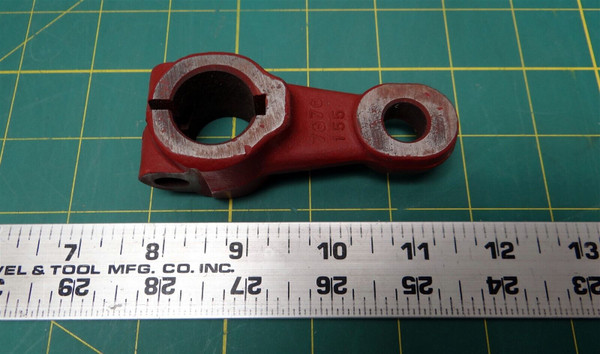

 Clutch Release Lever
M809 Series Diesel Truck, 5 - Ton, 6 x 6
  P/N: 7376155
NSN:Â 2520-00-040-2248
SPECIAL FEATURES
OFFSET HEIGHT: 0.360 IN. NOMINAL
OVERALL WIDTH
1.375 INCHES NOMINAL
SHAFT SECURING METHOD
KEYWAY
SHAFT END THICKNESS
1.250 INCHES NOMINAL
MATERIAL DOCUMENT AND CLASSIFICATION
66, SAE 1020 THROUGH 1035 FED STD SINGLE MATERIAL RESPONSE
LINK END THICKNESS
0.531 INCHES NOMINAL
LINK END HOLE DIAMETER
0.500 INCHES NOMINAL
KEYWAY WIDTH
0.252 INCHES NOMINAL
KEYWAY LENGTH
1.250 INCHES NOMINAL
III MATERIAL
STEEL
FEATURES PROVIDED
KEYWAY
CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES
2.156 INCHES NOMINAL
BORE TYPE
PLAIN STRAIGHT
BORE LENGTH
1.250 INCHES NOMINAL
BORE DIAMETER
0.875 INCHES NOMINAL
END ITEM IDENTIFICATION
CLUTCH ASSEMBLIES, VEHICULAR
