Product Overview

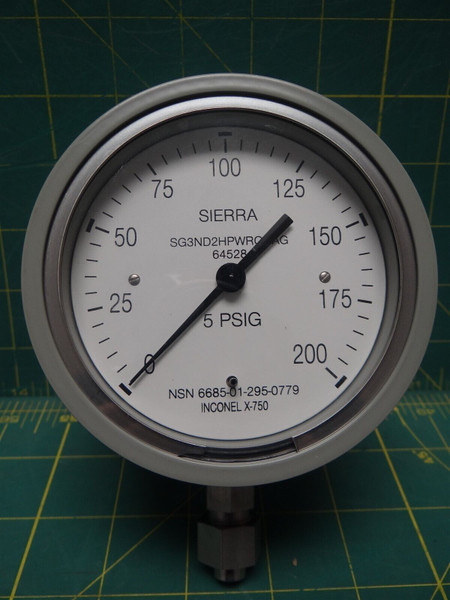

Dial Indicating Pressure Gage
 NSN: 6685-01-295-0779
PN: SG3ND2HPWRONAG
INCONEL X-750
OVERALL DIAMETER: 4.750 INCHES NOMINAL
OVERALL DEPTH: 2.500 INCHES NOMINAL
CALE TYPE: SINGLE
SCALE SMALLEST INCREMENT: 5.0 POUNDS PER SQUARE INCH
SCALE RANGE: +0.0/+200.0 POUNDS PRESSURE PER SQUARE INCH
SCALE NAME: PRESSURE
SCALE INSCRIPTION/BACKGROUND COLOR: BLACK MARKINGS ON WHITE BACKGROUND
PROTECTIVE CRYSTAL MATERIAL: PLASTIC
POINTER TYPE: INDICATING
POINTER COLOR: BLACK
MOUNTING METHOD: SURFACE
GRADUATION UNIT: 50.0 POUNDS PER SQUARE INCH
DIAL SIZE: 3-1/2 IN.
CONNECTION TYPE: EXTERNAL
CONNECTOR TYPE VENT: NOT PROVIDED
CONNECTION SIZE: O-RING UNION
CONNECTION QUANTITY: 1
CONNECTION LOCATION: BOTTOM
CASE MATERIAL: ALUMINUM OR STEEL
ADJUSTABILITY: ADJUSTABLE
ACTUATION TYPE: BOURDON TUBE
ACTUATING ELEMENT MATERIAL: NICKEL COPPER ALUMINUM ALLOY OR NICKEL-CHROMIUM-IRON ALLOY
 NSN: 6685-01-295-0779
PN: SG3ND2HPWRONAG
INCONEL X-750
OVERALL DIAMETER: 4.750 INCHES NOMINAL
CALE TYPE: SINGLE
POINTER TYPE: INDICATING
MOUNTING METHOD: SURFACE
GRADUATION UNIT: 50.0 POUNDS PER SQUARE INCH
CONNECTION TYPE: EXTERNAL
CONNECTOR TYPE VENT: NOT PROVIDED
ACTUATING ELEMENT MATERIAL: NICKEL COPPER ALUMINUM ALLOY OR NICKEL-CHROMIUM-IRON ALLOY
