Diaphragm 2.25" Diameter, PN 81639-09, NSN 6685-00-678-0299

(No reviews yet) Write a Review
$28.59
Diaphragm 2.25" Diameter, PN 81639-09, NSN 6685-00-678-0299
SKU:
IF_C63C2CBD
Adding to cart… The item has been added

Product Overview

Diaphragm 2.25" Diameter, PN 81639-09, NSN 6685-00-678-0299

PN: 81639-09

NSN: 6685-00-678-0299

NSN
Item Name		 Technical Characteristics
6685-006780299

DIAPHRAGM
MRC Requirements Characteristics
TEXT GENERAL CHARACTERISTICS ITEM DESCRIPTION INEOPRENE NYLON BASE 2.250 IN. DIA,0.015 IN. MIN 0.093 IN. MAX THK,12 HOLES 0.188 IN. DIA SPACED ON 1.562 IN. DIA BOLT CIRCLE,CENTER HOLE 0.250 IN. DIA,2 HOLES 0.125 IN. DIA ON 0.688 IN. DIA BOLT CIRCLE
AGAV END ITEM IDENTIFICATION F D TURBINE STEAM VALVE ACTUATOR 3295367 BUSHIPS

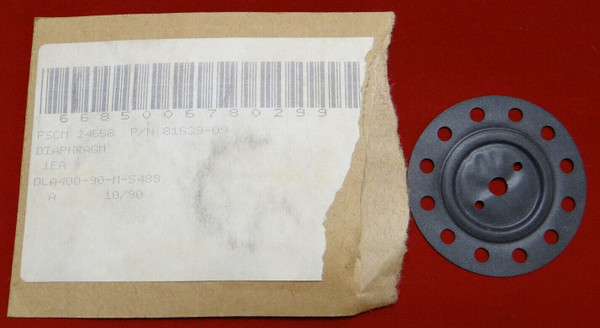

New surplus item with original packaging. Please see photos for more.
