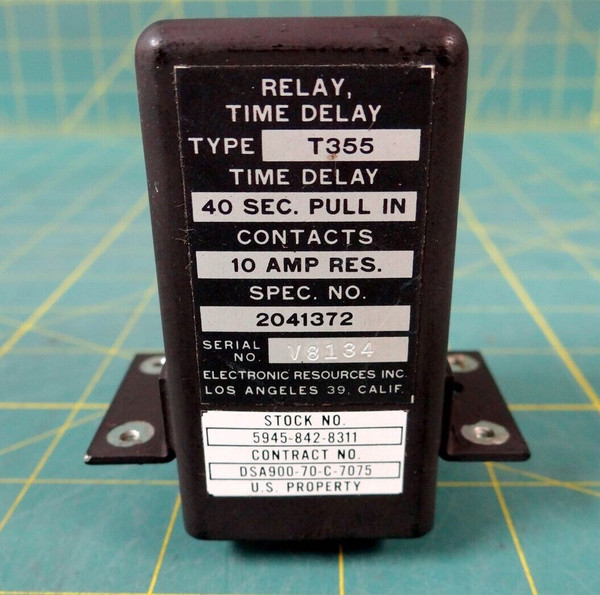

Electronic Resources Time Delay Relay P/N F31234

Electronic Resources Time Delay Relay P/N F31234

Specifications:

Part: F31234  /  Alt. L503000198  /  Alt. 2041372

NSN: 5945-00-842-8311

Manufacuturer: Electronic Resourses, Inc. USA

Additional Information:

Thread Class 2B single mounting facility

Overall Length 2.400 inches nominal

Center TO Center Distance Between Mounting Facilities Parallel TO Length 1.938 inches nominal single mounting facility

Center TO Center Distance Between Mounting Facilities Parallel TO Width 0.875 inches nominal single mounting facility

Overall Height 3.250 inches nominal

Overall Width 1.660 inches nominal

Environmental Protection Hermetic

Winding Quantity 1

Coil Quantity 1

Winding DC Resistance Rating 2.8 ohms nominal single winding

Duty Type Continuous

Mounting Facility Type AND Quantity 4 threaded hole single mounting facility

Pile-UP Main Contact Form Arrangement 4C

Features Provided Polarized

Thread Quantity PER Inch 40 single mounting facility

Nominal Thread Size 0.112 inches single mounting facility

Mounting Facility Pattern Rectangular single mounting facility

Nominal Operating Current Rating AND Type 10.0 amperes dc single winding

Time Delay 15.00 seconds nominal fixed operate and release time

Operating Voltage Rating AND Type AT Specified Temp 28.0 volts dc 25 deg celsius single winding

Main Contact Load Current Rating AT Maximum Rated Voltage 10.0 amperes dc resistive load

Main Contact Maximum Voltage Rating IN Volts 28.0 dc

Thread Series Designator Unc single mounting facility

Terminal Type AND Quantity 14 pin all functions
