Product Overview

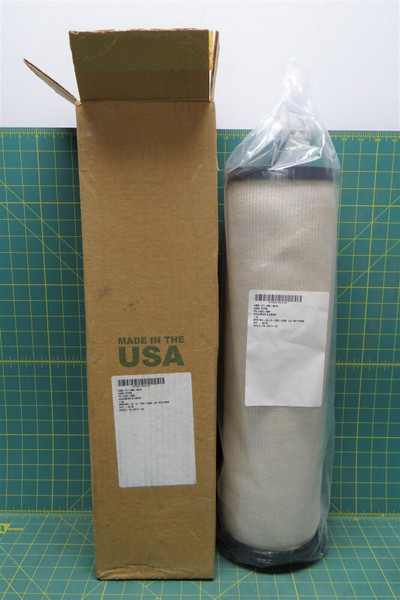

Facet CA22-3SB Series 3 Coalescer Element 6" x 22" API-1581 NSN 4330-01-458-9915
Facet CA series 3 coalescer cartridges offer the finest performance available. This standard line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.
The Facet coalescer separator housings equipped with CA Series 3 coalescer and companion separator cartridges have been tested and fully qualified to meet the performance requirements of API Bulletin 1581, Third Edition, Groups I and II, Classes A, B and C.
Built for balanced fluid flow-thru and structural strength, each CA Series 3 coalescer cartridge is a single-piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a treated, perforated metal center tube-all encased in an outer sock material. All are 6 in. OD (152 mm) by 3.5 in. ID (89 mm) and available in standard interchangeable nominal lengths in increments from 11.25 in. (290 mm) to 57.25 in. (1450 mm).
The CA Series 3 coalescer cartridges are available in two cartridge mounting styles; self-centering rod mount and screw base. The rod mount style has treated metal end caps, while the screw base ends are injection molded, glass-filled nylon. This screw base material offers superior strength and ease of maintenance-uniform threads, no shrinkage, no galling and no gasket to recover.
A permanently affixed Buna-N gasket seals against the V-type knife edge mounting adaptor to provide a positive seal. It will not separate from the cartridge during installation or change out.
Features:
-Tested and qualified to the Third Edition of API Bulletin 1581, Group II, Classes A, B and C
-Multi-layered media for increased solids holding capacity
-Ultra-fine solids removal
-Maximum water coalescence
-Balanced cartridge flow characteristics
-Recommended maximum operating temperature: 240°F (115°C)
-Withstands in excess of 75 psi (517 kPa) differential pressure
-pH range from 5 to 9
-Choice of self-centering rod or screw base coalescer cartridge mounting styles
Materials:
-All metal components are treated against corrosion
-Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
Overall Length: 22.000 inches Nominal
Overall Diameter: 6.000 inches Nominal
End Item Identification: BETA SYSTEMS SEPARATORS (P/N:SO-623VA); HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)
Criticality Code Justification: FEAT
Special Features: Weapon System Essential
Material: Steel Corrosion Resisting
New surplus in manufacturers packaging, see photos for details.
XXQXX10
Facet CA series 3 coalescer cartridges offer the finest performance available. This standard line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.
The Facet coalescer separator housings equipped with CA Series 3 coalescer and companion separator cartridges have been tested and fully qualified to meet the performance requirements of API Bulletin 1581, Third Edition, Groups I and II, Classes A, B and C.
Built for balanced fluid flow-thru and structural strength, each CA Series 3 coalescer cartridge is a single-piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a treated, perforated metal center tube-all encased in an outer sock material. All are 6 in. OD (152 mm) by 3.5 in. ID (89 mm) and available in standard interchangeable nominal lengths in increments from 11.25 in. (290 mm) to 57.25 in. (1450 mm).
The CA Series 3 coalescer cartridges are available in two cartridge mounting styles; self-centering rod mount and screw base. The rod mount style has treated metal end caps, while the screw base ends are injection molded, glass-filled nylon. This screw base material offers superior strength and ease of maintenance-uniform threads, no shrinkage, no galling and no gasket to recover.
A permanently affixed Buna-N gasket seals against the V-type knife edge mounting adaptor to provide a positive seal. It will not separate from the cartridge during installation or change out.
Features:
-Tested and qualified to the Third Edition of API Bulletin 1581, Group II, Classes A, B and C
-Multi-layered media for increased solids holding capacity
-Ultra-fine solids removal
-Maximum water coalescence
-Balanced cartridge flow characteristics
-Recommended maximum operating temperature: 240°F (115°C)
-Withstands in excess of 75 psi (517 kPa) differential pressure
-pH range from 5 to 9
-Choice of self-centering rod or screw base coalescer cartridge mounting styles
Materials:
-All metal components are treated against corrosion
-Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
Overall Length: 22.000 inches Nominal
Overall Diameter: 6.000 inches Nominal
End Item Identification: BETA SYSTEMS SEPARATORS (P/N:SO-623VA); HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)
Criticality Code Justification: FEAT
Special Features: Weapon System Essential
Material: Steel Corrosion Resisting
New surplus in manufacturers packaging, see photos for details.
XXQXX10
