Product Overview

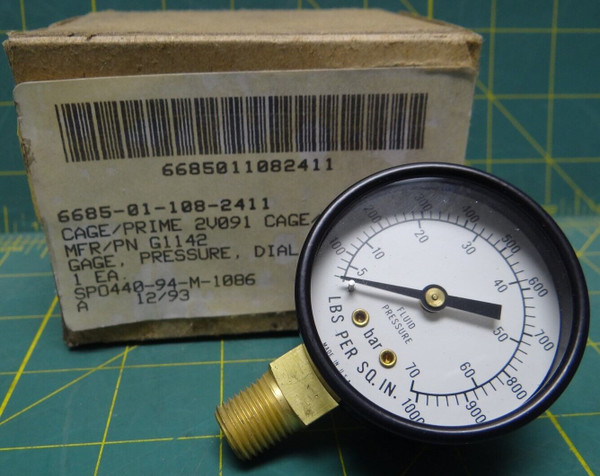

2 1/2" Fluid Pressure Gauge
NSN: 6685-01-108-2411
PN: G1142
CAGE/Prime: 2V091
CAGE/MFR: 72100
OVERALL DEPTH: 1.156 INCHES NOMINAL
OVERALL DIAMETER: 2.656 INCHES NOMINAL
CASE MATERIAL: STEEL
CASE SURFACE TREATMENT: POLISHED
GRADUATION UNIT: 10.0 POUNDS PER SQUARE INCH
ACTUATION TYPE: BOURDON TUBE
ADJUSTABILITY: ADJUSTABLE
SCALE RANGE: 0.0 TO 100.0 POUNDS PRESSURE PER SQUARE INCH
SCALE NAME: PRESSURE
DIAL SIZE: 2-1/2 IN. DIA
CONNECTION QUANTITY: 1
POINTER COLOR: BLACK
POINTER TYPE: INDICATING
SCALE TYPE: SINGLE
SCALE SMALLEST INCREMENT: 1.0 POUNDS PER SQUARE INCH
CONNECTION TYPE: EXTERNAL
MOUNTING METHOD: RIGID STEM
SCALE ACCURACY: PORM 1/2 PCT FULL SCALE
ACTUATING ELEMENT MATERIAL: PHOSPHOR BRONZE
SCALE INSCRIPTION/BACKGROUND COLOR: BLACK MARKINGS ON WHITE BACKGROUND
CONNECTION LOCATION: BOTTOM
BEZEL TYPE: BAYONET
PROTECTIVE CRYSTAL MATERIAL: GLASS
CONNECTION SIZE: 0.250 IN. NPT DIA
MOUNTING CONNECTION LOCATION: BOTTOM
CONNECTOR TYPE VENT: NOT PROVIDED
MATERIAL: STEEL
XXQXX07
NSN: 6685-01-108-2411
PN: G1142
CAGE/Prime: 2V091
CAGE/MFR: 72100
OVERALL DEPTH: 1.156 INCHES NOMINAL
OVERALL DIAMETER: 2.656 INCHES NOMINAL
CASE MATERIAL: STEEL
CASE SURFACE TREATMENT: POLISHED
GRADUATION UNIT: 10.0 POUNDS PER SQUARE INCH
ACTUATION TYPE: BOURDON TUBE
ADJUSTABILITY: ADJUSTABLE
SCALE RANGE: 0.0 TO 100.0 POUNDS PRESSURE PER SQUARE INCH
SCALE NAME: PRESSURE
DIAL SIZE: 2-1/2 IN. DIA
CONNECTION QUANTITY: 1
POINTER COLOR: BLACK
POINTER TYPE: INDICATING
SCALE TYPE: SINGLE
SCALE SMALLEST INCREMENT: 1.0 POUNDS PER SQUARE INCH
CONNECTION TYPE: EXTERNAL
MOUNTING METHOD: RIGID STEM
SCALE ACCURACY: PORM 1/2 PCT FULL SCALE
ACTUATING ELEMENT MATERIAL: PHOSPHOR BRONZE
SCALE INSCRIPTION/BACKGROUND COLOR: BLACK MARKINGS ON WHITE BACKGROUND
CONNECTION LOCATION: BOTTOM
BEZEL TYPE: BAYONET
PROTECTIVE CRYSTAL MATERIAL: GLASS
CONNECTION SIZE: 0.250 IN. NPT DIA
MOUNTING CONNECTION LOCATION: BOTTOM
CONNECTOR TYPE VENT: NOT PROVIDED
MATERIAL: STEEL
XXQXX07
