Product Overview

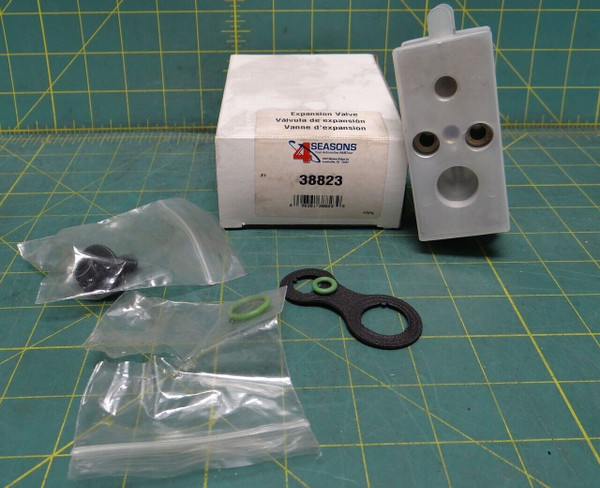

Four Seasons Expansion Block Valve 38823, Aluminum
Four Seasons' expansion devices are specifically calibrated to provide proper flow to the evaporator as well as restricting or modulating high pressure liquid causing a pressure drop to lower the refrigerant temperature. They also provide optimum cabin comfort for both the driver and passengers.
Features & Benefits
Color: Aluminum
Description: Expansion Valves
Dimensions (IN) - Liquid Inlet Size: 0.540 IN
Dimensions (IN) - Liquid Outlet Size: 0.550 in
Dimensions (IN) - Suction Inlet Size: 0.8 IN
Dimensions (IN) - Suction Outlet Size: 0.76 IN
Dimensions (MM) - Liquid Inlet Size: 13.8 mm
Dimensions (MM) - Liquid Outlet Size: 14.000 mm
Dimensions (MM) - Suction Inlet Size: 20.4 mm
Dimensions (MM) - Suction Outlet Size: 19.4 mm
Liquid Inlet Fitting Gender: Female
Liquid Inlet Fitting Thread Diameter: No. 6
Liquid Inlet Style: Dual O-Ring
Liquid Inlet Thread Type: Not Threaded
Liquid Inlet Type: O-Ring
Liquid Outlet Fitting Gender: Female
Liquid Outlet Fitting Thread Diameter: No. 8
Liquid Outlet Style: Gasket
Liquid Outlet Thread Type: Not Threaded
Liquid Outlet Type: O-Ring
Material: Aluminum
Meets / Exceeds OEM?: Yes
Mounting Hole Quantity: 2
O-Ring A Number/Desc: [24149] / Gasket
O-Ring A Quantity: 1
O-Ring B Number/Desc: [24626] / Green O-Ring
O-Ring B Quantity: 2
O-Ring C Number/Desc: [24642] / Green O-Ring
O-Ring C Quantity: 2
Refrigerant Type: R134a
Style: w/o Solenoid
Suction Inlet Fitting Gender: Female
Suction Inlet Fitting Thread Diameter: No. 12
Suction Inlet Style: Gasket
Suction Inlet Thread Type: Not Threaded
Suction Inlet Type: O-Ring
Suction Outlet Fitting Gender: Female
Suction Outlet Fitting Thread Diameter: No. 12
Suction Outlet Style: Dual O-Ring
Suction Outlet Thread Type: Not Threaded
Suction Outlet Type: O-Ring
Super Heat: 3.500
Switch Included?: Not Included
Tonnage: 1.500
Type: Block Type
New surplus. See photos for more details.
xxqxx13
Four Seasons' expansion devices are specifically calibrated to provide proper flow to the evaporator as well as restricting or modulating high pressure liquid causing a pressure drop to lower the refrigerant temperature. They also provide optimum cabin comfort for both the driver and passengers.
Features & Benefits
- Block Valves are aluminum construction; all internal parts are designed to OE specifications
- Internally and Externally Equalized Valves are copper and brass construction
- Tubes to Cap connections are double soldered to insure integrity
- Coverage includes both forward and reverse flow designs
- Tonnage and Superheat is matched to OE specifications
- Power valve is seasoned for 30 days, assembled and 100% function tested prior to shipping
Color: Aluminum
Description: Expansion Valves
Dimensions (IN) - Liquid Inlet Size: 0.540 IN
Dimensions (IN) - Liquid Outlet Size: 0.550 in
Dimensions (IN) - Suction Inlet Size: 0.8 IN
Dimensions (IN) - Suction Outlet Size: 0.76 IN
Dimensions (MM) - Liquid Inlet Size: 13.8 mm
Dimensions (MM) - Liquid Outlet Size: 14.000 mm
Dimensions (MM) - Suction Inlet Size: 20.4 mm
Dimensions (MM) - Suction Outlet Size: 19.4 mm
Liquid Inlet Fitting Gender: Female
Liquid Inlet Fitting Thread Diameter: No. 6
Liquid Inlet Style: Dual O-Ring
Liquid Inlet Thread Type: Not Threaded
Liquid Inlet Type: O-Ring
Liquid Outlet Fitting Gender: Female
Liquid Outlet Fitting Thread Diameter: No. 8
Liquid Outlet Style: Gasket
Liquid Outlet Thread Type: Not Threaded
Liquid Outlet Type: O-Ring
Material: Aluminum
Meets / Exceeds OEM?: Yes
Mounting Hole Quantity: 2
O-Ring A Number/Desc: [24149] / Gasket
O-Ring A Quantity: 1
O-Ring B Number/Desc: [24626] / Green O-Ring
O-Ring B Quantity: 2
O-Ring C Number/Desc: [24642] / Green O-Ring
O-Ring C Quantity: 2
Refrigerant Type: R134a
Style: w/o Solenoid
Suction Inlet Fitting Gender: Female
Suction Inlet Fitting Thread Diameter: No. 12
Suction Inlet Style: Gasket
Suction Inlet Thread Type: Not Threaded
Suction Inlet Type: O-Ring
Suction Outlet Fitting Gender: Female
Suction Outlet Fitting Thread Diameter: No. 12
Suction Outlet Style: Dual O-Ring
Suction Outlet Thread Type: Not Threaded
Suction Outlet Type: O-Ring
Super Heat: 3.500
Switch Included?: Not Included
Tonnage: 1.500
Type: Block Type
New surplus. See photos for more details.
xxqxx13
