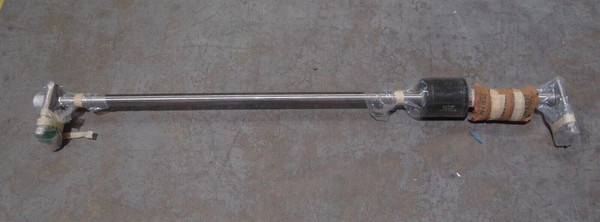

Gems Sensors Inc. Liquid Transmitter PN: 114383 NSN: 6680-01-280-8904

TERMINAL TYPE

STUD

TERMINAL QUANTITY

3

VOLTAGE RATING

10.0 VOLTS MINIMUM AND 12.0 VOLTS MAXIMUM

OVERALL LENGTH

54.750 INCHES NOMINAL

PRESSURE RATING

0.000 POUNDS PER SQUARE INCH MINIMUM AND 400.000 POUNDS PER SQUARE INCH MAXIMUM

MOUNTING METHOD

BRACKET

MEDIA FOR WHICH DESIGNED

WATER

FLOAT MATERIAL

RUBBER, BUNA-N

FLOAT EFFECTIVE TRAVEL

44.000 INCHES NOMINAL

CURRENT TYPE

DC

ATTACHMENT FEATURE QUANTITY

2

ACTUATION METHOD

FLOAT

ELECTRICAL CONNECTION QUANTITY

1

ELECTRICAL CONNECTION IDENTIFYING NUMBER

PART NO. 36468

ELECTRICAL CONNECTION CONTROLLING AGENCY

CANNON ELECTRIC
