General Electric Panel Voltmeter 0 to 150 VAC 1.605" X 1.605" P/N 21C1713-17

General Electric Panel Voltmeter 0 to 150 VAC 1.605" X 1.605" P/N 21C1713-17

Name: General Electric Panel Voltmeter 0 to 150 VAC 1.605" X 1.605" P/N 21C1713-17
Brand: General Electric
SKU: IF_00A17905
Price: 39.71 USD
Availability: OutOfStock

General Electric

(No reviews yet) Write a Review

$39.71

General Electric Panel Voltmeter 0 to 150 VAC 1.605" X 1.605" P/N 21C1713-17

SKU:: IF_00A17905

Current Stock:

Product Overview

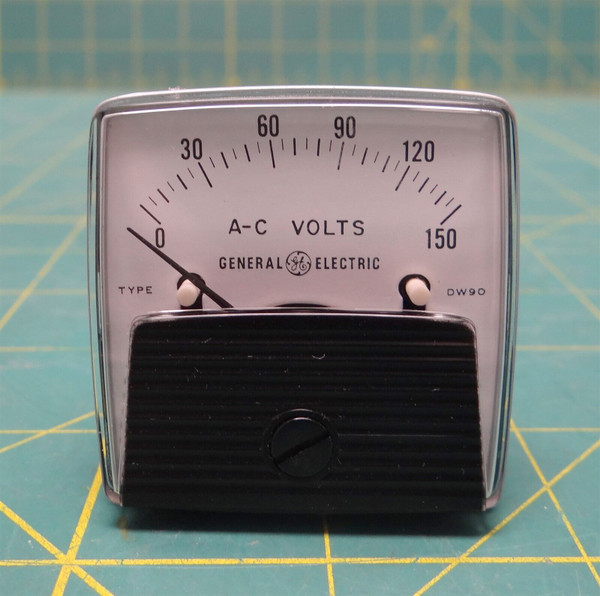

General Electric Panel Voltmeter

Part # 21C1713-17

Alt part # 50-188051PZPZ (Ametek)

NSN 6625-00-236-3279

Specifications :

Scale range : 0 to 150 AC volts

Overall length : 1.605"

Overall width : 1.605"

Meter depth behind mounting flange : 1.230"

Meter body diameter behind mounting flange : 1.510"

Mounts with 2 threaded studs

Case material : plastic

Frequency : 60 Hz

Sensitivity rating : 1,000 OHMS per volt

Movement type : moving coil, permanent magnet

Movement suspension method : jewel pivot base

Circuit attachment method : threaded stud (qty 2)

Includes gasket & mounting hardware (pictured)
