Product Overview

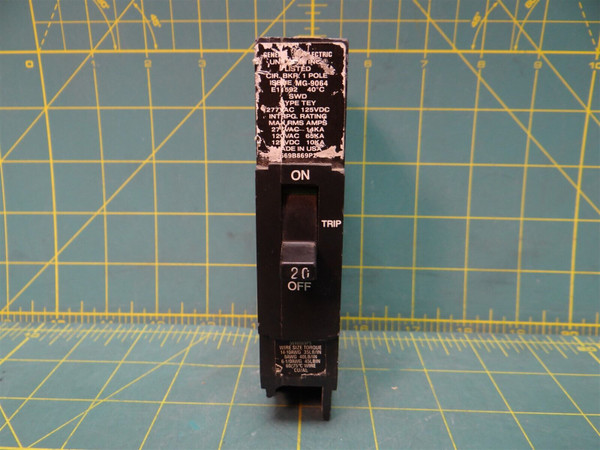

General Electric TEY120 Circuit Breaker, 20 Amp, 1 Pole, 277VAC, 14kA
General Electric TEY series one pole 20 ampere bolt-on molded case circuit breaker with maximum voltage rating of 277V tripping method thermal magnetic and high interrupting rating of 14 kiloampere at 277V functions long-time and instantaneous.
Specifications :
• Manufacturer : General Electric
• Cat No. : TEY120
• Alternate Part No. : TEY-120
• Product Type : Circuit Breaker
• Molded Case Fixed Thermal Magnetic
• Tey Frame
• 120/240/277 Vac 125 Vdc
• 20 Ampere
• 1 Pole
• Phase : 1-Phase
• Connection : Bolt-On
• Protection : Thermal Magnetic
• Functions : (LI) Long-Time and Instantaneous
• Interrupting Rating 65 Kiloampere At 120 Vac 14 Kiloampere At 240/277 Vac 10 Kiloampere At 125 Vdc
• Terminal Aluminum/Copper Wire
• Size 1 Inch W X 3 1/16 Inch D X 5 1/4 Inch H
• Approval Ul
• Tey Model
• Authentic General Electric Product.
Preowned and untested surplus, may show signs of wear from installation. Piece of bakelite broken off at bottom. See photos for more details.
xxqxx13
General Electric TEY series one pole 20 ampere bolt-on molded case circuit breaker with maximum voltage rating of 277V tripping method thermal magnetic and high interrupting rating of 14 kiloampere at 277V functions long-time and instantaneous.
Specifications :
• Manufacturer : General Electric
• Cat No. : TEY120
• Alternate Part No. : TEY-120
• Product Type : Circuit Breaker
• Molded Case Fixed Thermal Magnetic
• Tey Frame
• 120/240/277 Vac 125 Vdc
• 20 Ampere
• 1 Pole
• Phase : 1-Phase
• Connection : Bolt-On
• Protection : Thermal Magnetic
• Functions : (LI) Long-Time and Instantaneous
• Interrupting Rating 65 Kiloampere At 120 Vac 14 Kiloampere At 240/277 Vac 10 Kiloampere At 125 Vdc
• Terminal Aluminum/Copper Wire
• Size 1 Inch W X 3 1/16 Inch D X 5 1/4 Inch H
• Approval Ul
• Tey Model
• Authentic General Electric Product.
Preowned and untested surplus, may show signs of wear from installation. Piece of bakelite broken off at bottom. See photos for more details.
xxqxx13
