| MRC |
Requirements |
Characteristics |
| CTMQ |
SURFACE GROOVE LOCATION AND QUANTITY |
1 INTERNAL |
| ABHP |
OVERALL LENGTH |
4.1750 INCHES MINIMUM AND 4.1770 INCHES MAXIMUM |
| AGFT |
RIGHT FLANGE WIDTH |
0.3980 INCHES NOMINAL |
| AGFR |
RIGHT FLANGE OUTSIDE DIAMETER |
3.4219 INCHES MINIMUM AND 3.4843 INCHES MAXIMUM |
| AGKH |
LUBRICANT ACCOMMODATION STYLE |
GROOVED CIRCULAR |
| AGFS |
LEFT FLANGE WIDTH |
0.3980 INCHES NOMINAL |
| AGFQ |
LEFT FLANGE OUTSIDE DIAMETER |
3.4219 INCHES MINIMUM AND 3.4843 INCHES MAXIMUM |
| STYL |

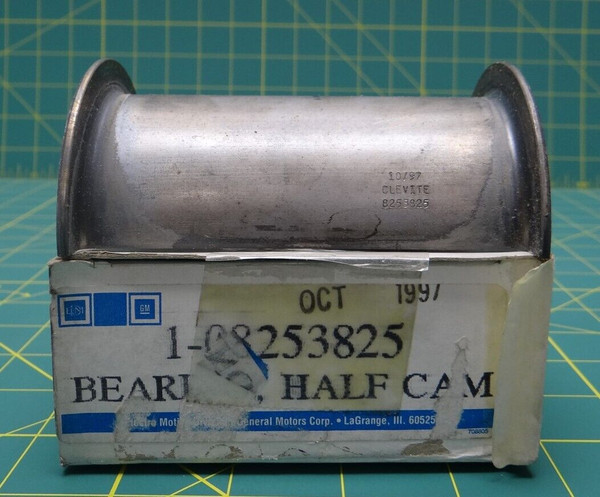

III STYLE DESIGNATOR |
HALF SLEEVE, EXTERNAL FLANGES BOTH ENDS |
| MATT |
MATERIAL |
STEEL OUTER LAYER |
| MATT |
MATERIAL |
COPPER ALLOY INNER LAYER |
| CTLF |
HOLE SPACING ANGLE |
42.0 DEGREES NOMINAL |
| AAUB |
HOLE DIAMETER |
0.3750 INCHES NOMINAL FIRST |
| BZLX |
CORNER SHAPE |
SQUARE RIGHT FLANGE OUTSIDE LEFT CORNER |
| BZLX |
CORNER SHAPE |
SQUARE RIGHT FLANGE BODY CORNER |
| BZLX |
CORNER SHAPE |
SQUARE OUTSIDE RIGHT CORNER |
| BZLX |
CORNER SHAPE |
SQUARE OUTSIDE LEFT CORNER |
| BZLX |
CORNER SHAPE |
SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER |
| BZLX |
CORNER SHAPE |
SQUARE INSIDE RIGHT CORNER |
| BZLX |
CORNER SHAPE |
SQUARE LEFT FLANGE BODY CORNER |
| BZLX |
CORNER SHAPE |
SQUARE INSIDE LEFT CORNER |
| ADAR |
BODY OUTSIDE DIAMETER |
2.7045 INCHES NOMINAL |
| ADAS |
BODY INSIDE DIAMETER |
2.7005 INCHES NOMINAL |
| CTJM |
ANTIROTATION/LUBRICATION TYPE AND QUANTITY |
2 HOLE |
| AGKD |
DISTANCE FROM CENTERLINE OF OPENING TO LEFT END OF BEARING |
2.0880 INCHES NOMINAL FIRST |
