Product Overview

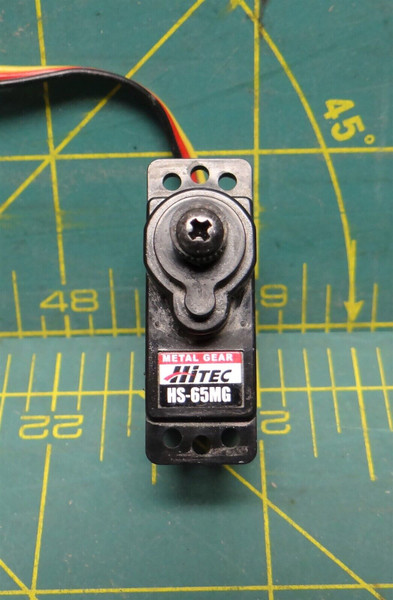

HiTec HS-65MG Mighty Metal Gear Feather Servo
Product Description:
Considered one of the most powerful servos in the micro class, the 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Performance Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.14 ~ 0.11
Maximum Torque Range oz./in.: 25 ~ 31
Maximum Torque Range kg./cm.: 1.8 ~ 2.2
Current Draw at Idle: 8 mAh
No Load Operating Current Draw: 220 mAh
Stall Current Draw: 1200 mAh
Dead Band Width: 5 µs
Physical Specifications:
Dimensions (Inches): 0.92 x 0.45 x 0.94
Dimensions (Metric): 23.6 x 11.6 x 24.0
Weight (Ounces): 0.42
Weight (Gram): 11.9
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Neodymium
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type/Ømm): Micro 23
Case Material: Plastic
Dust/Water Resistance: N/A
Connector Gauge (AWG)/Strand Count: 28/20
Radio Control Applications:
Parkflyer: <42 oz.
Sport Plane: 36-41 oz.
Sailplane: <2 meter/DLG
3D Performance: Foamies
Electric Helicopter: 400-500mm
Gas Helicopter: 30 - 39 Class
Short Course/Truck: 1/8th
Power Boat: 1/8th
Pre-owned condition, was painted previously, hence the slight discoloration in the photos. See photos for details.
XXQXX10
Product Description:
Considered one of the most powerful servos in the micro class, the 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Performance Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.14 ~ 0.11
Maximum Torque Range oz./in.: 25 ~ 31
Maximum Torque Range kg./cm.: 1.8 ~ 2.2
Current Draw at Idle: 8 mAh
No Load Operating Current Draw: 220 mAh
Stall Current Draw: 1200 mAh
Dead Band Width: 5 µs
Physical Specifications:
Dimensions (Inches): 0.92 x 0.45 x 0.94
Dimensions (Metric): 23.6 x 11.6 x 24.0
Weight (Ounces): 0.42
Weight (Gram): 11.9
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Neodymium
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type/Ømm): Micro 23
Case Material: Plastic
Dust/Water Resistance: N/A
Connector Gauge (AWG)/Strand Count: 28/20
Radio Control Applications:
Parkflyer: <42 oz.
Sport Plane: 36-41 oz.
Sailplane: <2 meter/DLG
3D Performance: Foamies
Electric Helicopter: 400-500mm
Gas Helicopter: 30 - 39 Class
Short Course/Truck: 1/8th
Power Boat: 1/8th
Pre-owned condition, was painted previously, hence the slight discoloration in the photos. See photos for details.
XXQXX10
