Product Overview

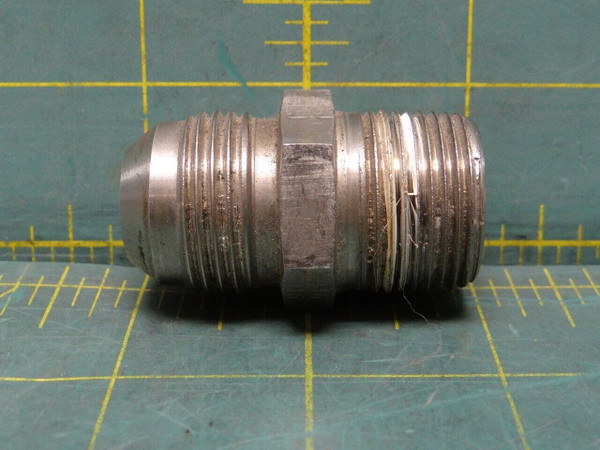

Hydraulic Hose Adapter: 5/8 JIC 37° Male Flare x 3/4" MNPT, Rigid, Straight
Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They are 316 stainless steel for excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Shape: Straight
Type: Adapter
Tube Connection
For Use With: Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water Material 316 Stainless Steel
Maximum Pressure: 4,500 psi @ 72° F
Temperature Range: -420 to 1200° F
Length: 1 61/64"
For Tube Material: 304 Stainless Steel, 316 Stainless Steel
New surplus. May show signs of wear from storage. See photos for more details.
xxqxx13
Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They are 316 stainless steel for excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
Shape: Straight
Type: Adapter
Tube Connection
- Connection Style: 37° Flared
- Flared Connection Type: Standard
- Gender: Male
- Thread Type: UN/UNF (JIC)
- Thread Size:
- 7/8"-14
- Dash Size: 10
- For Tube OD: 5/8"
Pipe Connection
- Connection Style: Threaded
- Gender: Male
- Thread Type: NPT
- Dash Size: 12
For Use With: Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water Material 316 Stainless Steel
Maximum Pressure: 4,500 psi @ 72° F
Temperature Range: -420 to 1200° F
Length: 1 61/64"
For Tube Material: 304 Stainless Steel, 316 Stainless Steel
New surplus. May show signs of wear from storage. See photos for more details.
xxqxx13
