Product Overview

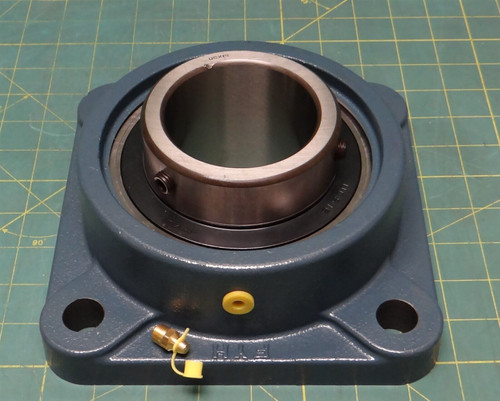

JIB Mounted Roller Bearing UCFX15 3in ID Dia 7.5in OD Four-Bolt Flange Cast Iron
Details:
-Mounted Bearing Type: Four-Bolt Flange Mount
-Bearing Type: Roller
-Roller Bearing Type: Tapered
-For Load Direction: Combined Radial and Thrust
-Housing Material: Cast Iron
-Bearing Material: Steel
-Seal Type: Sealed
-Shaft Mount Type: Set Screw
-For Shaft Type: Round
-For Shaft Diameter: 3"
-ID: 3" -ID Tolerance: 0" to 0.001"
-Overall: Height 7 3/4", Length 7 3/4", Width 4 11/16"
-Flange Thickness: 1 5/8"
-Mounting: Hole Diameter 3/4", Hole Center -to-Center 6", Fasteners Included No
-Radial Load Capacity, lbs.: Dynamic 12,300, Static 61,000
-Dynamic Thrust Load Capacity: 5,150 lbs.
-Maximum Speed: 2,000 rpm
-Temperature Range: -60° to 250° F
-Alignment Style: Fixed Alignment
-Screws not included
New bearing, light surface wear due to storage and handling (see photos for details).
XXQXX16
Details:
-Mounted Bearing Type: Four-Bolt Flange Mount
-Bearing Type: Roller
-Roller Bearing Type: Tapered
-For Load Direction: Combined Radial and Thrust
-Housing Material: Cast Iron
-Bearing Material: Steel
-Seal Type: Sealed
-Shaft Mount Type: Set Screw
-For Shaft Type: Round
-For Shaft Diameter: 3"
-ID: 3" -ID Tolerance: 0" to 0.001"
-Overall: Height 7 3/4", Length 7 3/4", Width 4 11/16"
-Flange Thickness: 1 5/8"
-Mounting: Hole Diameter 3/4", Hole Center -to-Center 6", Fasteners Included No
-Radial Load Capacity, lbs.: Dynamic 12,300, Static 61,000
-Dynamic Thrust Load Capacity: 5,150 lbs.
-Maximum Speed: 2,000 rpm
-Temperature Range: -60° to 250° F
-Alignment Style: Fixed Alignment
-Screws not included
New bearing, light surface wear due to storage and handling (see photos for details).
XXQXX16
