Product Overview

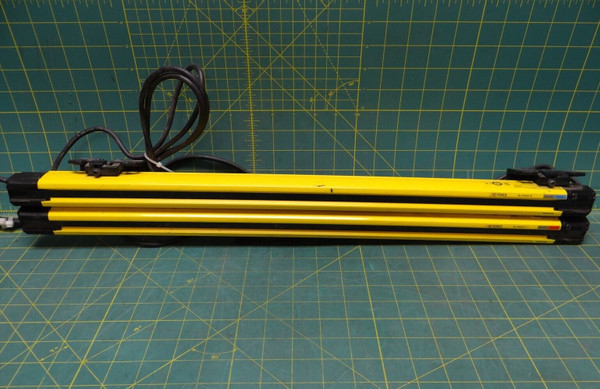

Keyence GL-R32H Light Curtain Transmitter GL-R32H-T and Receiver GL-R32H-R
Pre-Owned surplus in good condition. See photos for more details.
xxqxx13
- Light source: Infrared LED (870 nm)
- Detection capability: 0.98" 25 mm
- Beam axis spacing/Lens diameter: 20 mm / 5 0.79" / 0.20"
- Detecting distance: 0.66 to 49.21' 0.2 to 15 m*1
- Effective aperture angle: Max. 2.5 (When operating distance is 9.84' 3 m or more)
- Response time (OSSD) (ms) - Wire synchronization, One-line or Optical synchronization system(Channel 0) - ON/OFF: 7.9
- Response time (OSSD) (ms) - Wire synchronization, One-line or Optical synchronization system (Channel 0) - OFF/ON: 50.6*2
- Response time (OSSD) (ms) - Wire synchronization, One-line or Optical synchronization system (Channel 0) - All blocked?ON: 68.3*3
- Response time (OSSD) (ms) - Optical synchronization system (Channel A or B) - ON/OFF: 10.9
- Response time (OSSD) (ms) - Optical synchronization system (Channel A or B) - OFF/ON: 55.1*2
- Response time (OSSD) (ms) - Optical synchronization system (Channel A or B) - All blocked/ON: 80.2*3
- Detection mode: Turns on when no interruptions are present in the detection zone
- Synchronization between the transmitter and receiver: Optical synchronization or Wire synchronization (Determined by wiring)
- Light interference prevention function: Prevents mutual interference in up to two GL-R systems. Optical synchronization: prevented by Channel A and B with setting switch Wire synchronization: prevented automatically
- Control output (OSSD output) - Output: 2 transistor outputs. (PNP or NPN is determined by the cable type)
- Control output (OSSD output) - Max. load current: 500 mA*4
- Control output (OSSD output) - Residual voltage (during ON): Max. 2.5 V (with a cable length of 16.40' 5 m )
- Control output (OSSD output) - OFF state voltage: Max. 2.0 V (with a cable length of 16.40' 5 m )
- Control output (OSSD output) - Leakage current: Max. 200 A
- Control output (OSSD output) - Max. capacitive load: 2.2 F
- Control output (OSSD output) - Load wiring resistance: Max. 2.5
- Supplemental output (Non-safety-related output) - AUX: transistor outputs. (PNP or NPN is determined by the cable type) Load current: Max. 50 mA, Residual voltage: Max. 2.5 V (with a cable length of 16.40' 5 m )
- Supplemental output (Non-safety-related output) - Error output: transistor outputs. (PNP or NPN is determined by the cable type) Load current: Max. 50 mA, Residual voltage: Max. 2.5 V (with a cable length of 16.40' 5 m )
- Supplemental output (Non-safety-related output) - Muting lamp output: Incandescent lamp (24 VDC, 1 to 5.5 W) LED lamp (load current: 10 to 230 mA) can be connected.
- External input - When using a PNP output cable - EDM input Wait input Reset input Muting input 1, 2 Override input: ON voltage: 10 to 30 V OFF voltage: Open or 0 to 3 V Short circuit current: Approx. 2.5 mA (Approx. 10 mA with EDM input only)
- External input - When using an NPN output cable: ON voltage: 0 to 3 V OFF voltage: Open or 10 V or more Up to the power voltage Short circuit current: Approx. 2.5 mA (Approx. 10 mA with EDM input only)
- Rating - Power voltage: 24 VDC 20%, ripple (P-P) 10% or less, Class 2
- Power supply - Current consumption (Max.) (mA) - Transmitter: 61
- Power supply - Current consumption (Max.) (mA) - Receiver: 74
- Protection circuit: Reverse current protection, short-circuit protection for each output, surge protection for each output
- Approved standards - EMC - EMS: IEC61496-1, EN61496-1, UL61496-1
- Approved standards - EMC - EMI: EN55011 ClassA, FCC Part15B ClassA, ICES-003 ClassA
- Approved standards - Safety: IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE) IEC61496-2, EN61496-2, UL61496-2 (Type 4 AOPD) IEC61508, EN61508 (SIL3), IEC62061, EN62061 (SIL CL3) EN ISO13849-1:2015 (Category 4, PLe) UL508 UL1998
- Environmental resistance - Enclosure rating: IP65/IP67 (IEC60529)
- Environmental resistance - Overvoltage category: II
- Environmental resistance - Ambient temperature: -10 to 55C 14 to 131F, No freezing
- Environmental resistance - Ambient temperature for storage: -25 to +60C -13 to 140F (No freezing)
- Environmental resistance - Relative humidity: 15 to 85% RH (No condensation)
- Environmental resistance - Storage relative humidity: 15 to 95% RH
- Environmental resistance - Operating ambient luminance: Incandescent lamp: 3,000 lx or less. Sunlight: 20,000 lx or less
- Environmental resistance - Vibration: 10 to 55 Hz, 0.7 mm 0.03" compound amplitude, 20 sweeps each in the X, Y and Z directions
- Environmental resistance - Shock resistance: 100 m/s2 (approx. 10 G), 16 ms pulse in X, Y and Z directions, 1,000 times each axis
- Material - Main unit case: Aluminum
- Material - Upper case/lower case: Nylon (GF 30%)
- Material - Front cover: Polycarbonate, SUS304
- Weight - Transmitter: 880 g
- Weight - Receiver: 890 g
Pre-Owned surplus in good condition. See photos for more details.
xxqxx13
