Low Voltage Hex Inverter Microchip with 5V Tolerant Inputs LCX04 - Lot of 35

Low Voltage Hex Inverter Microchip with 5V Tolerant Inputs LCX04 - Lot of 35

Specifications:

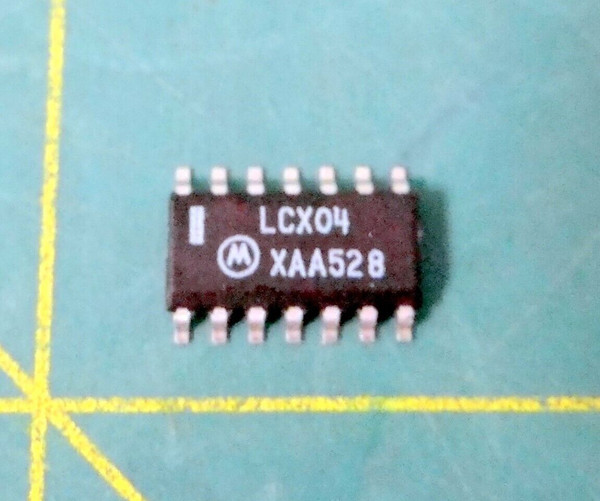

Part: LCX04  /  74LCX04  /  XAA528
Manufacturer: Fairchild (For Motorola)

Lot of 35

Features:

• 5V Tolerant Inputs
• 5.2 ns tpd max, 10uA ICCQ Max
• Power down high impedence inputs and outputs
• Supports live insertion/withdrawl
• 2.0V-3.6Vcc supply operation
• +- 24mA output drive
• Implements patented noise/EMI reduction circuitry
• Functionally compatible with 74 series 04
• Latch-Up performance Exceeds 500mA
• ESD Performance: Human Body Model - 2000V, Machine Model - 2000V

General Description:
The LCX04 contains Six inverters.
The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V Systems.
The LCX04 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

New surplus item
