Lucas Aerospace Fixed Film Resistor P/N 05-505042 NSN: 5905-00-476-6687

Lucas Aerospace Fixed Film Resistor P/N 05-505042 NSN: 5905-00-476-6687

Specifications:

Part: 05-505042  /  Alt. RN55D1822F

NSN: 5905-00-476-6687

Manufacturer: Lucas Aerospace Power Equipment

Additional Information:

Temp Coefficient OF Resistance IN PPM PER DEG Celsius: -
25.0 to 25.0

Electrical Resistance: 18.200 kilohms

Resistance Tolerance IN Percent: -1.000 to 1.000

Ambient Temp IN DEG Celsius AT Full Rated Power: 70.0

Ambient Temp IN DEG Celsius AT Zero Percent Rated Power:
165.0

Temp Range OF Temp Coefficient IN DEG Celsius: -55.0 to
165.0

Inclosure Method: Encapsulated

Terminal Type: Wire lead

Reliability Indicator: Not established

Terminal Length: 1.375 inches minimum and 1.625 inches
maximum

Body Diameter: 0.079 inches minimum and 0.140 inches
maximum

Body Length: 0.219 inches minimum and 0.281 inches maximum

Power Dissipation Rating IN Watts: 0.125 free air

Unpackaged Unit Weight: 0.3 grams

Style Designator: Axial terminal each end

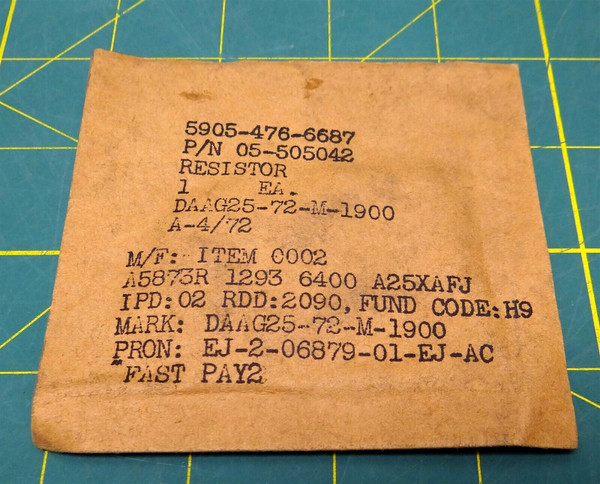

These items are New Surplus in Original Packaging. LOT OF 8 See photos for exact item.
