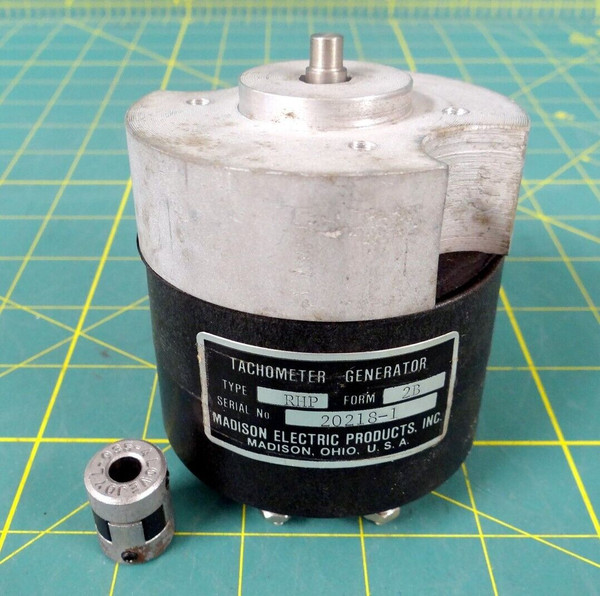

Madison Electric Tachometer Generator P/N ARHP2B

Madison Electric Tachometer Generator P/N ARHP2B

Specifications:
Part: ARHP2B / Alt. 1226636 / Alt. P2B
NSN: 6680-00-527-9671
Manufacturer: Madison Electric Products, Inc. USA

Additional Information:
Overall Height 3.500 inches
Overall Length 3.688 inches
Overall Width 2.500 inches
Electrical Resistance 1.53 kilohms
Shaft Diameter 0.2500 inches nominal single end
Current Type Ac output
Shaft Rotation Direction Clockwise single end
Mounting Method FACE
Mounting Facility Type AND Quantity 4 threaded hole
Accuracy Range IN Percent -3.0/+3.0
Calibration Speed IN RPM 2400.0
Calibration Voltage Output Type IN Volts 80.0 ac
Length OF Shaft From Housing 0.250 inches single end
Current Rating IN Amps 0.0032 single output
Shaft END Characteristic A1 single style single end
Terminal Type AND Quantity 2 binding post

Shows minor signs of wear, please see pictures.
