Moeller Inst. P/N MIL-G-18997 *NEW* Dial Indicating Pressure Gauge 0-100 PSIG

Moeller Instrument Co. P/N MIL-G-18997 *NEW* Dial Indicating Pressure Gauge 0-100 PSIG

Specifications:
Part: MIL-G-18997  /  Alt. SG4NN2HPWRANAG / Alt. SGD412Y-G-D
NSN: 6685-01-047-5116
Manufacturer: Moeller Instrument Company, USA

Additional Information:

Overall Depth 2.500 inches nominal

Bolt Circle Diameter 5.375 inches nominal

Mounting Hole Diameter 0.219 inches nominal

Mounting Hole Quantity 3

Overall Diameter 5.750 inches nominal

Case Material Aluminum

Case Surface Treatment Anodized, MIL-C-5541 and enamel, gray

Graduation Unit 20.0 pounds per square inch

Actuation Type Bourdon tube

Adjustability Adjustable

Scale Range +0.0/+100.0 pounds pressure per square inch

Scale Name Pressure

Dial Size 4-1/2 in. dia

Connection Quantity 1

Pointer Color Black and red

Pointer Type Indicating and reference

Scale Type Single

Scale Smallest Increment 1.0 pounds per square inch

Connection Type External

Mounting Method Flush panel

Scale Accuracy Porm 1 pct of scale range

Actuating Element Material Nickel copper alloy, QQ-N-286, class A

Scale Inscription/Background Color White background, black graduations and markings

Connection Location Rear

Protective Crystal Material Plastic

Connection Size 0.250 in. tube

Connector Type Vent Not provided

Nondefinitive Spec/STD Data A design and A type

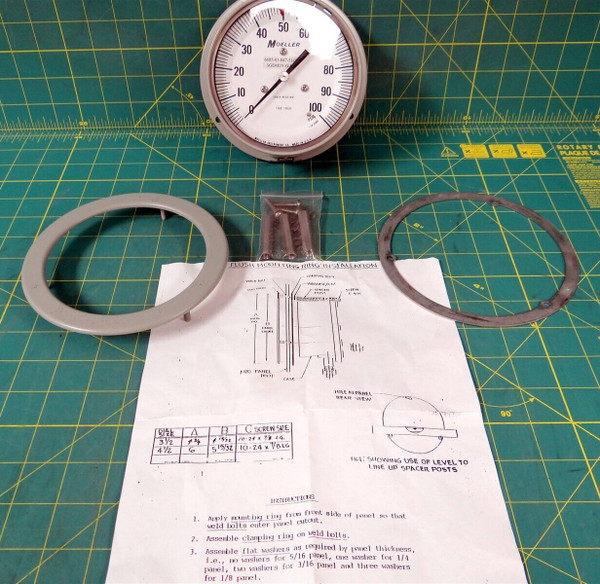

This item is NEW and in Original Packaging. Includes Gaskets and Mounting Hardware.
