Product Overview

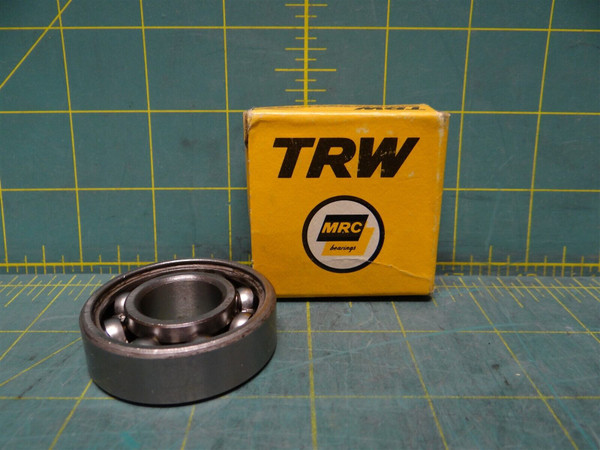

MRC 204S Radial Deep Groove Ball Bearing Round Bore 20 mm ID, 47 mm OD
Single-row radial deep groove bearing can carry significant radial loads, and, because of the uninterrupted raceway grooves and the high degree of conformity between balls and raceways, it can carry substantial thrust loads in either direction, even at very high speeds
SPECIFICATIONS
Bore Type: Round
Bore Diameter: 20 mm
Outside Diameter: 47 mm
Overall Width: 14 mm
Closure Type: Open
Row Type & Fill Slot: Single Row Non-Fill Slot
Internal Clearance: C0
Dynamic Load Capacity: 2860 lbf
Static Load Capacity: 1470 lbf
Precision Rating: ABEC 1 (ISO Class Normal)
Finish/Coating: Uncoated
Cage Material: Steel
Outer Ring Width: 14 mm
Fillet Radius: 1 mm
Maximum RPM: 18000 RPM
Series: 200-S
Weight: 0.25 lbs
New surplus in manufacturer packaging. See photos for more details.
xxqxx13
Single-row radial deep groove bearing can carry significant radial loads, and, because of the uninterrupted raceway grooves and the high degree of conformity between balls and raceways, it can carry substantial thrust loads in either direction, even at very high speeds
SPECIFICATIONS
Bore Type: Round
Bore Diameter: 20 mm
Outside Diameter: 47 mm
Overall Width: 14 mm
Closure Type: Open
Row Type & Fill Slot: Single Row Non-Fill Slot
Internal Clearance: C0
Dynamic Load Capacity: 2860 lbf
Static Load Capacity: 1470 lbf
Precision Rating: ABEC 1 (ISO Class Normal)
Finish/Coating: Uncoated
Cage Material: Steel
Outer Ring Width: 14 mm
Fillet Radius: 1 mm
Maximum RPM: 18000 RPM
Series: 200-S
Weight: 0.25 lbs
New surplus in manufacturer packaging. See photos for more details.
