Product Overview

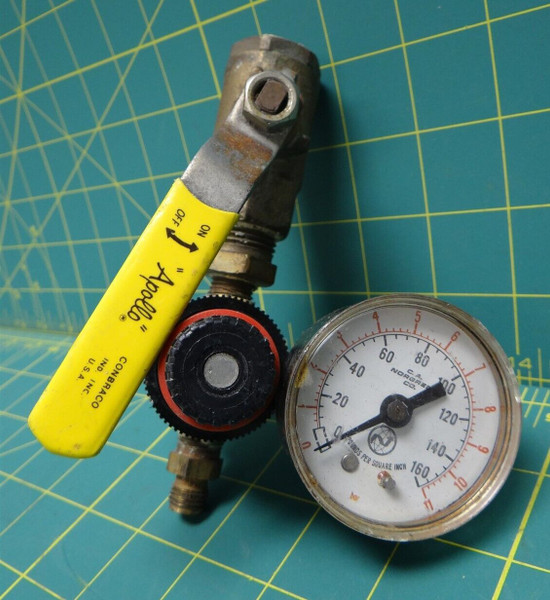

Norgren R04-200-RGKA, 160 PSI Gauge, 1/2" Apollo Ball Valve NSN 4820-00-181-8840
Part No. R04-200-RGKA
NSN: 4820-00-181-8840
Apollo Inline Ball Valve PN: C11
BODY STYLE: ANGLE
FURNISHED ITEMS: OUTLET PRESSURE GAGE
MEDIA FOR WHICH DESIGNED: AIR AND
MEDIA FOR WHICH DESIGNED: GAS, NON-CORROSIVE
FIRST END CONNECTION TYPE: THREADED INTERNAL PIPE
FIRST END STYLE DESIGNATOR: PLAIN
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR: 1/4-18 NPT
FIRST END THREAD DIRECTION: RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END: IDENTICAL
SEAT MATERIAL: PLASTIC, ACETAL
FLOW CONTROL DEVICE: PISTON, SPRING LOADED
END CONNECTION QUANTITY: 2
OUTLET PRESSURE RANGE: 2.0 TO 100.0 POUNDS PER SQUARE INCH
REGULATION TYPE: MANUAL SINGLE STAGE
MANUAL CONTROL METHOD: SCREW
VALVE LOADING METHOD: SPRING
MAXIMUM INLET PRESSURE RATING: 400.0 POUNDS PER SQUARE INCH
FILTER: NOT INCLUDED
TEMP RATING: 150.0 DEG FAHRENHEIT MAXIMUM
MATERIAL: ALUMINUM BODY
Used surplus item, see photos for more.
XXQXX07
Part No. R04-200-RGKA
NSN: 4820-00-181-8840
Apollo Inline Ball Valve PN: C11
BODY STYLE: ANGLE
FURNISHED ITEMS: OUTLET PRESSURE GAGE
MEDIA FOR WHICH DESIGNED: AIR AND
MEDIA FOR WHICH DESIGNED: GAS, NON-CORROSIVE
FIRST END CONNECTION TYPE: THREADED INTERNAL PIPE
FIRST END STYLE DESIGNATOR: PLAIN
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR: 1/4-18 NPT
FIRST END THREAD DIRECTION: RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END: IDENTICAL
SEAT MATERIAL: PLASTIC, ACETAL
FLOW CONTROL DEVICE: PISTON, SPRING LOADED
END CONNECTION QUANTITY: 2
OUTLET PRESSURE RANGE: 2.0 TO 100.0 POUNDS PER SQUARE INCH
REGULATION TYPE: MANUAL SINGLE STAGE
MANUAL CONTROL METHOD: SCREW
VALVE LOADING METHOD: SPRING
MAXIMUM INLET PRESSURE RATING: 400.0 POUNDS PER SQUARE INCH
FILTER: NOT INCLUDED
TEMP RATING: 150.0 DEG FAHRENHEIT MAXIMUM
MATERIAL: ALUMINUM BODY
Used surplus item, see photos for more.
XXQXX07
