Product Overview

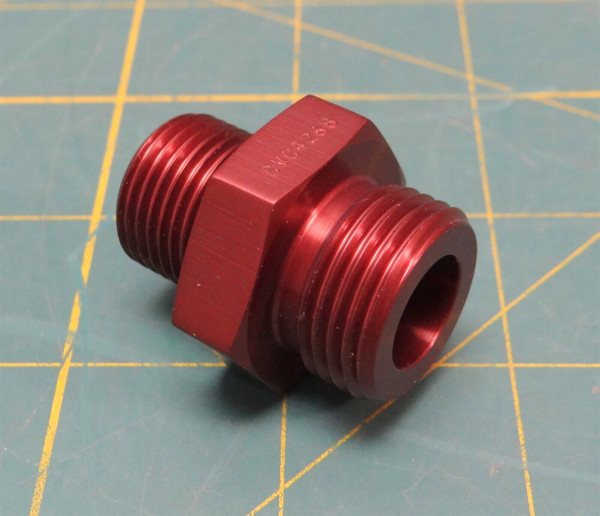

Pamco Straight Tube To Boss Adapter Fitting
Part # CVC4268W10-8
NSN 4730-00-407-0493
Specifications :
Material : aluminum alloy 7075
Material documentation & classification : QQ-A-225/9, T73 Fed Spec single material
Surface treatment : anodize
Surface treatment documentation & classification : MIL-A-8625, Type 1, class 2 mil spec single treatment
Seat angle : 12 degrees
End 1 connection type : threaded eternal tube
End 1 connection style : flareless tube
Thread size end 1 : .750"
End connection 2 type : threaded external boss
End connection 2 style : external seat for gasket seal (BOSS)
Thread size end 2 : .875"
Overall length : 1.390"
Outside diameter tube accommodated : .500"
Max operating pressure : 3,000 PSIÂ
xxqxx02
