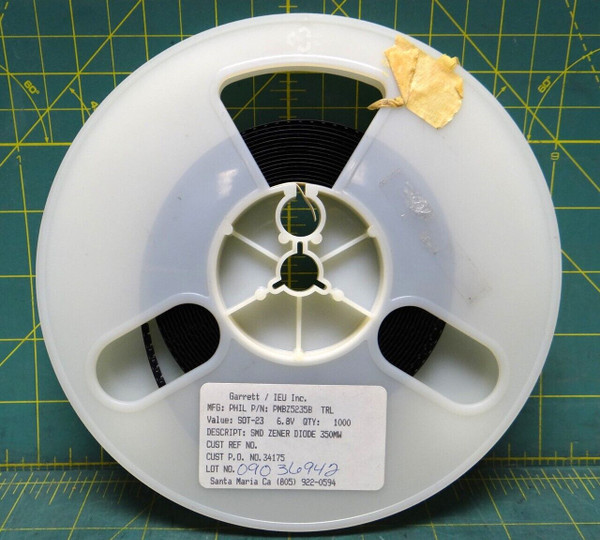

Philips PMBZ5235B Unidirectional Voltage Regulator Diode 6.8V 0.25W SDT-23
FEATURES Total power dissipation: max. 250 mW Tolerance series: ±5% Working voltage range: nom. 33 V Non-repetitive peak reverse power dissipation: max. 40 W.
APPLICATIONS General regulation functions.
DESCRIPTION Low-power voltage regulator diodes in small SOT23 plastic SMD packages. The series consists of 32 types with nominal working voltages from 33 V.
LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL IF IZSM Ptot PZSM Tstg Tj Notes 1. Device mounted on a ceramic substrate of mm. 2. Device mounted an FR4 printed circuit-board.
ELECTRICAL CHARACTERISTICS Total series 25 °C unless otherwise specified.
SYMBOL VF PARAMETER forward voltage
PARAMETER continuous forward current non-repetitive peak reverse current total power dissipation non-repetitive peak reverse power dissipation storage temperature junction temperature
CONDITIONS = 100 µs; square wave; 25 °C prior to surge Tamb = 25 °C; note 1 Tamb = 25 °C; note = 100 µs; square wave; 25 °C prior to surge
New surplus. See photos for more details.
