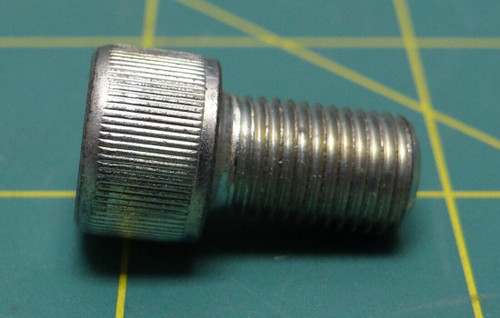

Screw Cap w/Socket Head P/N 008252394 - LOT OF 5

Screw Cap w/Socket Head P/N 008252394 - LOT OF 5

Specifications:
Part: 008252394
NSN: 5305-00-825-2394
Manufacturer: Nylok Corporation Western Fastener Division
Federal Supply Class: 5305
Description: SCREW,CAP,SOCKET HEAD

Detail:
An externally threaded fastener whose threaded portion is of one nominal diameter.
The head has an internal socket for use with an inserted driver.
A locking feature is incorporated in the design of the threads.

Techincal Specification:
FASTENER LENGTH 1.000 INCHES NOMINAL
HEAD HEIGHT 0.371 INCHES NOMINAL
HEAD DIAMETER 0.557 INCHES NOMINAL
HEAD STYLE FLAT CHAMFER
NOMINAL THREAD DIAMETER 0.375 INCHES
INTERNAL DRIVE STYLE HEXAGON
LOCKING FEATURE PELLET THREADS
MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
MATERIAL STEEL COMP 303 OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.844 INCHES MINIMUM
THREAD QUANTITY PER INCH 16
THREAD SERIES DESIGNATOR UNC
WIDTH ACROSS FLATS 0.312 INCHES NOMINAL

No original packaging. No signs of use or installation. LOT OF 5
