Product Overview

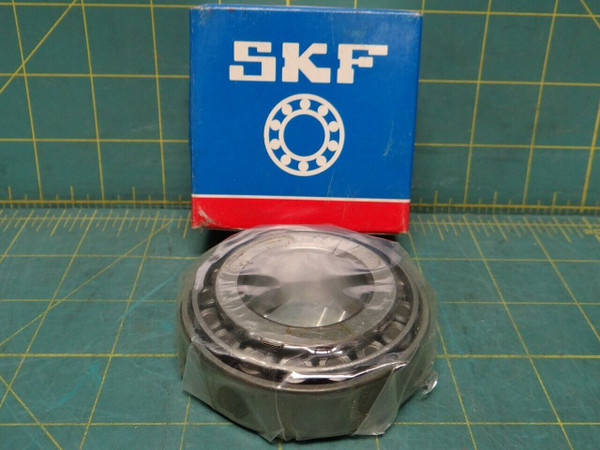

SKF 32207 J2/Q Single Row Tapered Roller Bearings 24.25 mm W x 72 mm OD x 35 mm
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Dimensions
Bore diameter: 35 mm
Contact angle: 14.036 °
Outside diameter: 72 mm
Width, inner ring: 23 mm
Width, outer ring: 19 mm
Width, total: 24.25 mm
Performance
Basic dynamic load rating: 66 kN
Basic static load rating: 78 kN
Limiting speed: 9 500 r/min
Reference speed: 7 000 r/min
Properties
Arrangement of contact angle (double-row bearing): Not applicable
Bearing part: Complete bearing
Bore type: Cylindrical
Cage: Sheet metal
Coating: Without
Locating feature, bearing outer ring: None
Lubricant: None
Matched arrangement: No
Number of rows: 1
Relubrication feature: Without
Sealing: Without
Sealing type: Not applicable
New surplus in original packaging. See photos for more details.
xxqxx13
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
- High radial and axial load carrying capacity
- Accommodate axial loads in one direction
- Low friction and long service life
- Separable and interchangeable components
Dimensions
Bore diameter: 35 mm
Contact angle: 14.036 °
Outside diameter: 72 mm
Width, inner ring: 23 mm
Width, outer ring: 19 mm
Width, total: 24.25 mm
Performance
Basic dynamic load rating: 66 kN
Basic static load rating: 78 kN
Limiting speed: 9 500 r/min
Reference speed: 7 000 r/min
Properties
Arrangement of contact angle (double-row bearing): Not applicable
Bearing part: Complete bearing
Bore type: Cylindrical
Cage: Sheet metal
Coating: Without
Locating feature, bearing outer ring: None
Lubricant: None
Matched arrangement: No
Number of rows: 1
Relubrication feature: Without
Sealing: Without
Sealing type: Not applicable
New surplus in original packaging. See photos for more details.
