Product Overview
Spears 4529-020C Industrial Ball Check Valve 2" Socket/FNPT CPVC Body
DESCRIPTION
Spears® Ball Check Valve, True Union 2000 Industrial, 2 in Nominal, Socket/FNPT, 235 psi, 73 deg F, Media: Water, 7-7/8 in Inlet to Outlet Length, CPVC Ball, CPVC Body, EPDM Softgoods, Gray, 4-5/16 in H, Domestic
Spears® True Union 2000 Ball Valves, 3-Way Ball Valves and Ball Check Valves provide maximum versatility with fully interchangeable valve cartridges. Provides for easier system design modifications and upgrades in multiphase projects, or anywhere changes in valve types are desired. Simply exchange any True Union 2000 valve in-line using existing union nuts. Also mates with Spears® new Schedule 80 Unions and Diaphragm Valves. All True Union 2000 valves feature a low profile, compact design for minimal space requirements. Available in PVC or CPVC with choice of EPDM or FKM O-ring seals and socket, threaded, flanged, spigot or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears® offers valve Retrofit Kits for easy in-line replacement of other valves and factory installed Actuation Packages. Assembled with silicone-free lubricant.
SPECIFICATIONS
Brand: Spears®
Type: True Union 2000 Industrial
Body Material: CPVC
Color: Gray
Domestic/Import: Domestic
End Style: Socket/FNPT
Nominal Size: 2 in
Pressure Rating: 235 psi
Temperature Rating: 73 deg F
Dimensions: 4-5/16 in H
Media: Water
Softgoods Material: EPDM
Ball Material: CPVC
Inlet to Outlet Length: 7-7/8 in
Weight: 3.1 lbs
ITEM FEATURES
Chemical and corrosion resistant CPVC construction
Strong, buttress thread union nuts
Spears® Safe-T-Blocked® seal carrier
Uses standard O-Ring seat
Fully serviceable, replaceable components
Suitable for either horizontal or vertical installations and vacuum service
Assembled with silicone free, water soluble lubricant
EPDM O-ring

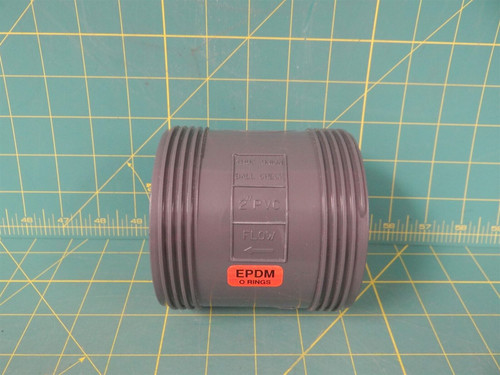

New surplus. Obtained from a facility that required individual unit testing. Item may show signs of mounting/testing, but is in otherwise new condition. See photos for details.
xxqxx13
DESCRIPTION
Spears® Ball Check Valve, True Union 2000 Industrial, 2 in Nominal, Socket/FNPT, 235 psi, 73 deg F, Media: Water, 7-7/8 in Inlet to Outlet Length, CPVC Ball, CPVC Body, EPDM Softgoods, Gray, 4-5/16 in H, Domestic
Spears® True Union 2000 Ball Valves, 3-Way Ball Valves and Ball Check Valves provide maximum versatility with fully interchangeable valve cartridges. Provides for easier system design modifications and upgrades in multiphase projects, or anywhere changes in valve types are desired. Simply exchange any True Union 2000 valve in-line using existing union nuts. Also mates with Spears® new Schedule 80 Unions and Diaphragm Valves. All True Union 2000 valves feature a low profile, compact design for minimal space requirements. Available in PVC or CPVC with choice of EPDM or FKM O-ring seals and socket, threaded, flanged, spigot or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears® offers valve Retrofit Kits for easy in-line replacement of other valves and factory installed Actuation Packages. Assembled with silicone-free lubricant.
SPECIFICATIONS
Brand: Spears®
Type: True Union 2000 Industrial
Body Material: CPVC
Color: Gray
Domestic/Import: Domestic
End Style: Socket/FNPT
Nominal Size: 2 in
Pressure Rating: 235 psi
Temperature Rating: 73 deg F
Dimensions: 4-5/16 in H
Media: Water
Softgoods Material: EPDM
Ball Material: CPVC
Inlet to Outlet Length: 7-7/8 in
Weight: 3.1 lbs
ITEM FEATURES
Chemical and corrosion resistant CPVC construction
Strong, buttress thread union nuts
Spears® Safe-T-Blocked® seal carrier
Uses standard O-Ring seat
Fully serviceable, replaceable components
Suitable for either horizontal or vertical installations and vacuum service
Assembled with silicone free, water soluble lubricant
EPDM O-ring
New surplus. Obtained from a facility that required individual unit testing. Item may show signs of mounting/testing, but is in otherwise new condition. See photos for details.
xxqxx13
