Product Overview

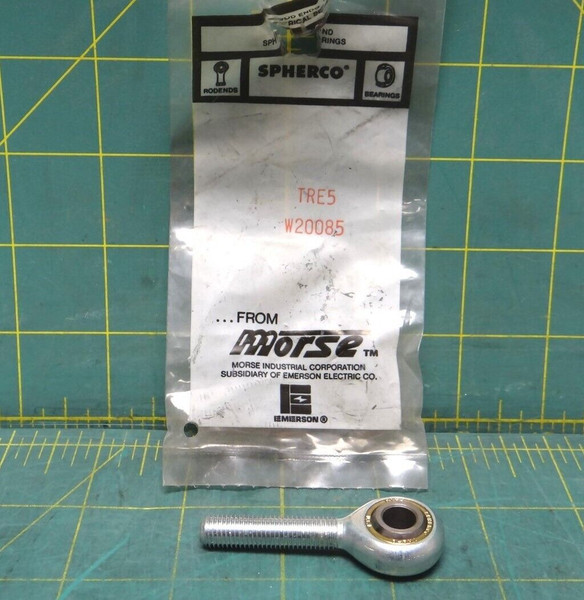

Spherco TRE-5 W20085 Precision Grade Non-Lubricatable Rod End Bearing
Rod End Type: Male Threaded
Bore Diameter: 0.3100 in
Shank Thread Size: .3125-24
Thread Direction: Right Hand
Grade: Precision
Misalignment: Angle 7 °
Thread Type: UNF-3A
Lubrication Type: Non-Lubricatable
Housing Material: 9 mm
Ball Material: 52100 Alloy Steel
Race Material: Brass
Radial Static Load Capacity: 2500 lbf
Maximum Operating Temperature: 250 °F
Head Diameter: 0.875 in
Head Width: 0.344 in
Ball Diameter: 0.625 in
Ball Width: 0.4370 in
Length to Ball Center: 1.8750 in
Overall Height: 2.3125 in
Shank Thread Length: 1.25 in
Series: Spherco®
Manufacturer UPC Number: 637400174705
Weight: 0.08 lb
New surplus in original packaging. See photos for more details.
