Product Overview

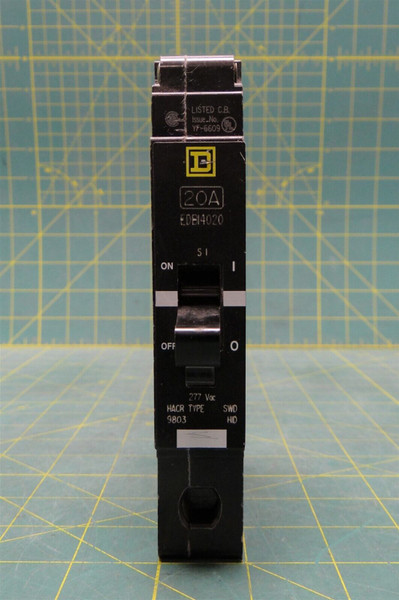

Square D EDB14020 Mini Circuit Breaker E-Frame 20A 1 Pole 415Y/240 VAC 25 kA Max
Schneider Electric / Square D Bolt-On Circuit Breaker Its Compact And Easy to Install Single pole thermal-magnetic circuit breaker has a current rating of 20 Amps at 40 deg C and voltage rating of 120/240/277 Vac it has an interrupt current rating of 25 Kiloampere At 120 Vac it accommodates aluminum/copper wire of size 14 to 6 AWG at load miniature circuit breaker has mounting bolts to hold the breaker in place circuit breaker is Ul listed and Csa certified.
Specifications:
-Manufacturer: Schneider Electric / Square D
-Cat. No.: EDB14020
-Alternate Part No.: EDB-14020
-Product Type: Bolt-On Circuit Breaker
-Branch -Protection: Thermal Magnetic
-Number Of Poles: 1 Pole
-Voltage Rating: 120/240/277 Vac At 50/60 Hz (Ul/Csa) 240/415 Vac At 50/60 Hz (Iec)
-Amperage: 20 Amps
-Interrupting Rating: 25 Kiloampere At 120 Vac 18 Kiloampere At 120/240/277 Vac (Ul/Csa)
-20 Kiloampere At 240 Vac 10 Kiloampere At 415 Vac (Iec)
-Wire Size: 14 To 6 Awg (Aluminum/Copper)
-Size: 0.98 Inch W X 4.05 Inch D X 5.66 Inch H
-Used On Nf Series Panelboard
-Edb Model
-Approval Ul Csa Ce
-Authentic Schneider Electric / Square D Product
Pre-owned/untested by seller. See photos for details.
XXQXX10
Schneider Electric / Square D Bolt-On Circuit Breaker Its Compact And Easy to Install Single pole thermal-magnetic circuit breaker has a current rating of 20 Amps at 40 deg C and voltage rating of 120/240/277 Vac it has an interrupt current rating of 25 Kiloampere At 120 Vac it accommodates aluminum/copper wire of size 14 to 6 AWG at load miniature circuit breaker has mounting bolts to hold the breaker in place circuit breaker is Ul listed and Csa certified.
Specifications:
-Manufacturer: Schneider Electric / Square D
-Cat. No.: EDB14020
-Alternate Part No.: EDB-14020
-Product Type: Bolt-On Circuit Breaker
-Branch -Protection: Thermal Magnetic
-Number Of Poles: 1 Pole
-Voltage Rating: 120/240/277 Vac At 50/60 Hz (Ul/Csa) 240/415 Vac At 50/60 Hz (Iec)
-Amperage: 20 Amps
-Interrupting Rating: 25 Kiloampere At 120 Vac 18 Kiloampere At 120/240/277 Vac (Ul/Csa)
-20 Kiloampere At 240 Vac 10 Kiloampere At 415 Vac (Iec)
-Wire Size: 14 To 6 Awg (Aluminum/Copper)
-Size: 0.98 Inch W X 4.05 Inch D X 5.66 Inch H
-Used On Nf Series Panelboard
-Edb Model
-Approval Ul Csa Ce
-Authentic Schneider Electric / Square D Product
Pre-owned/untested by seller. See photos for details.
XXQXX10
