Product Overview

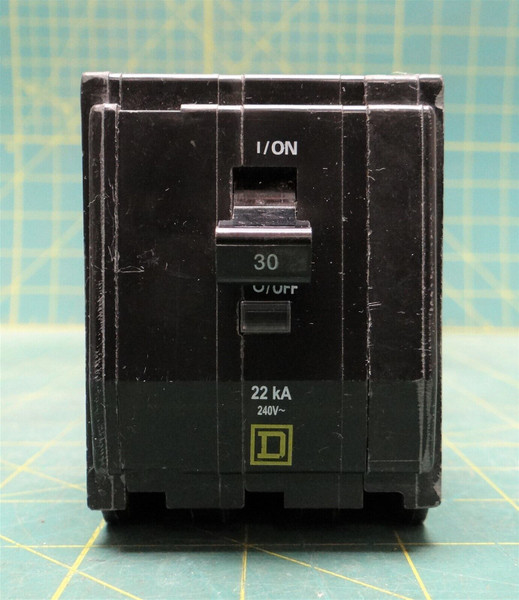

Square D QOB330 DP4075 3P 3PH 30A 22kA @ 240VAC Thermal Magnetic Circuit Breaker
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Item: Miniature Circuit Breaker
Amps: 30 A
AC Voltage Rating: 120/240V AC
Circuit Breaker Type: Standard
Number of Poles: 3
DC Voltage Rating: 48V DC
Circuit Breaker Actuator: Paddle
Circuit Breaker Mounting Style: Bolt On
Compatible Panelboard/Load Center Series: QO
Phase: Three
Series: QOB
Max. AIR Rating: 10kA at 120/240V AC
For Use With: Square D NQOD Panelboards
Terminal Connection: Lug
Frame Size: 100A/QO
Length: 3.12 in
Width: 2.25 in
Depth: 2.91 in
Min. Operating Temp.: 104 Degrees F
Max. Operating Temp.: 104 Degrees F
Min. Wire Size: 8 AWG
Max. Wire Size: 2 AWG
Standards: CSA, UL Listed
Pre-owned/untested by seller. See photos for details.
