Product Overview

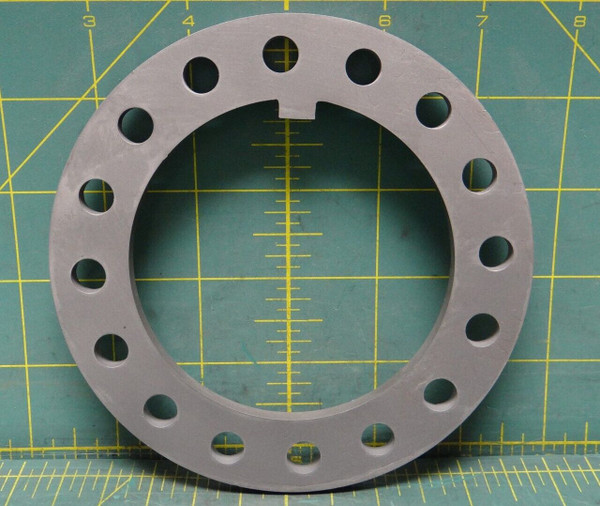

Steel Key Washer/Retainer Lock Plate 5" NSN 5310-00-700-7089 For MRAP
Hole Diameter: 3.380 Inches Minimum And
Hole Diameter: 3.390 Inches Maximum
Outside Diameter: 5.047 Inches Minimum And
Outside Diameter: 5.078 Inches Maximum
Internal Straight Key Width: 0.359 Inches Minimum And
Internal Straight Key Width: 0.391 Inches Maximum
Distance From Centerline To Top Of Internal Key: 1.493 Inches Minimum And
Distance From Centerline To Top Of Internal Key: 1.498 Inches Maximum
Internal Key Quantity: 1
Material Thickness: 0.210 Inches Minimum And
Material Thickness: 0.240 Inches Maximum
Special Features: 1st Hole Is Located 4 To 6 Degrees From Center Of Internal Key; 16 Holes 0.359 Inch Diameter Equally Spaced On 4.250 Inch Bolt Circle
Material: Steel Overall
Material Document And Classification: Qq-s-698 Fed Spec Single Material Response Or
Material Document And Classification: Qq-s-700 Fed Spec Single Material Response Overall
Style Designator: Key
Fits: M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks, M54 and variants 5-Ton Trucks
New surplus. See photos for more details.
xxqxx13
Hole Diameter: 3.380 Inches Minimum And
Hole Diameter: 3.390 Inches Maximum
Outside Diameter: 5.047 Inches Minimum And
Outside Diameter: 5.078 Inches Maximum
Internal Straight Key Width: 0.359 Inches Minimum And
Internal Straight Key Width: 0.391 Inches Maximum
Distance From Centerline To Top Of Internal Key: 1.493 Inches Minimum And
Distance From Centerline To Top Of Internal Key: 1.498 Inches Maximum
Internal Key Quantity: 1
Material Thickness: 0.210 Inches Minimum And
Material Thickness: 0.240 Inches Maximum
Special Features: 1st Hole Is Located 4 To 6 Degrees From Center Of Internal Key; 16 Holes 0.359 Inch Diameter Equally Spaced On 4.250 Inch Bolt Circle
Material: Steel Overall
Material Document And Classification: Qq-s-698 Fed Spec Single Material Response Or
Material Document And Classification: Qq-s-700 Fed Spec Single Material Response Overall
Style Designator: Key
Fits: M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks, M54 and variants 5-Ton Trucks
New surplus. See photos for more details.
xxqxx13
