Product Overview

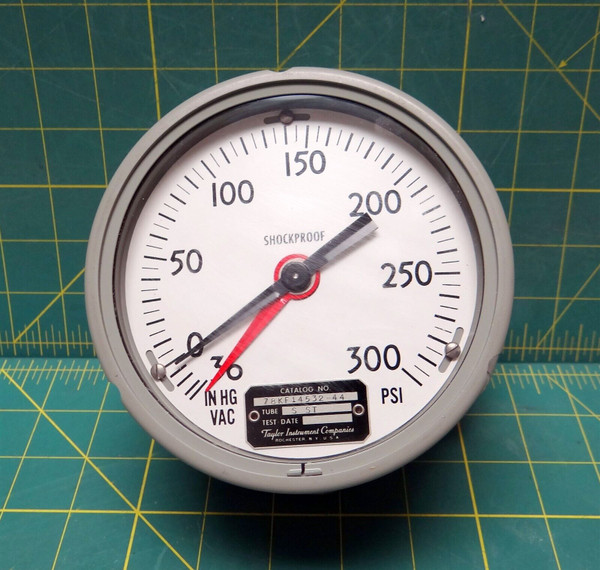

Taylor Instruments Pressure GaugeÂ
Specifications :
Part: Catalog # 78KKF14532-44 / Alt. MIL-G-18997 / Alt. SA24-3CTP-RWBX
NSN: 6685-00-906-3959
Manufacturer: Taylor Instruments, USA
Additional Information:
Overall Depth: 2.406 inches nominal
Overall Diameter: 4.969 inches nominal
Case Material: Aluminum
Graduation Unit: 10.0 inches and 50.0 pounds per square inch
Actuation Type: Bourdon tube
Adjustability: Adjustable
Scale Range: +0.0/+36.0 inches of mercury and +0.0/+300.0
pounds pressure per square inch
Scale Name: Pressure-vacuum
Dial Size: 4-1/2 in. dia
Connection Quantity: 1
Pointer Color: Black and red
Pointer Type: Indicating and reference
Scale Type: DIAL
Scale Smallest Increment: 1.0 inches and 5.0 pounds per square
inch
Connection Type: External
Mounting Method: Surface
Scale Accuracy: Porm 1 pct full scale
Actuating Element Material: Nickel copper aluminum alloy or
nickel-chromium-iron alloy
Scale Inscription/Background Color: Black markings on white
background
Scale Name FOR Which Pointer IS Designed: Pressure-vacuum
Connection Location: BACK
Protective Crystal Material: Plastic
Connection Size: 0.250 in. tube / 1/8" NPT
Connector Type Vent Not provided
Special Features: Pac apsk should read 0/30 in. and 0/300 psi
Nondefinitive Spec/STD Data: A design and C type
This is a new surplus item. Never used. In original packaging. See photos for exact condition.
