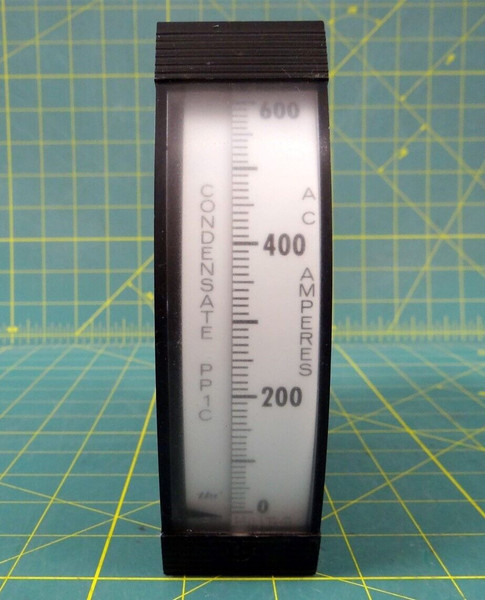

TBS 0-600 Condensate PP1C / AC Amperes Edgemeter P/N 755446

Specifications:
Part: 755446 / VX-252
NSN: 6625-00-463-4368
Manufacturer: TBS Instruments

Additional Information:
Overall Length 6.793 inches nominal
Overall Height 2.166 inches nominal
Overall Width 6.035 inches nominal
Scale Division Quantity 50 single indicator single range
Environmental Protection Fire resistant and shock resistant and vibration resistant
Indicator Type Dial W/pointer
Installation Design Panel
Dial Scale Marking Color Black single indicator single range
Accuracy IN Percent -1.5/+1.5 at full scale single indicator single range
Meter Depth Behind Mounting Flange 5.030 inches nominal
Meter Body Width Behind Mounting Flange 5.664 inches nominal
Movement Type Moving coil, permanent magnet
Background Color White single indicator single range
Pointer Color Black single indicator single range
Power Source External
Mounting Facility Type AND Quantity 2 bracket and 2 screw
Scale Graduation Type Linear single indicator single range
Measurement Range +0.0/+600.0 A.C. Amperes
Meter Body Height Behind Mounting Flange 1.770 inches nominal
Movement Suspension Method Taut band
Circuit Attachment Method AND Quantity 2 threaded stud
Special Features Ruggedized
Material Plastic polycarbonate
Nuclear Hardness Critical Feature Nonhardened
Surface Treatment Paint
Style Designator Rectangular flush mtg
Supplementary Features Vert mtg
FSC Application Data Test set, elect. equip.
