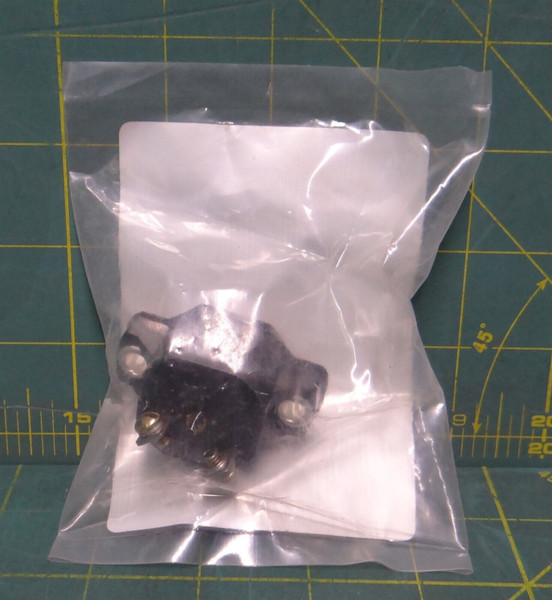

Texas Instruments 8 Amp Relay PDA-8 NSN: 5925-00-886-8041
PN: PDA-8
NSN: 5925-00-886-8041
BODY STYLE: SINGLE POLE TYPE
OVERALL LENGTH:2.000 INCHES NOMINAL
BODY WIDTH:1.188 INCHES NOMINAL
UNABLE TO DECODE: UNABLE TO DECODE
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH: 0.906 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH: 1.574 INCHES NOMINAL MOUNTING SURFACE TO TERMINAL END DISTANCE: 1.266 INCHES NOMINAL
POLE QUANTITY: 1
MOUNTING FACILITY TYPE AND QUANTITY: 2 THREADED HOLE
STORAGE TYPE: GENERAL PURPOSE WAREHOUSE
THREAD QUANTITY PER INCH: 32
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE: 8.0 AMPERES DC SINGLE LOCATION OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS: 30.0 DC SINGLE LOCATION
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS: 600.0 DC SINGLE LOCATION
CIRCUIT PROTECTION TYPE: OVERCURRENT SINGLE LOCATION
TRIP RELEASE METHOD: THERMAL SINGLE LOCATION
TRIP RELEASE CHARACTERISTIC: TIME DELAY SINGLE LOCATION
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT: 130.0 SINGLE LOCATION
RESET METHOD: AUTOMATIC
INTERNAL TRIP RELEASE CONFIGURATION: SERIES TRIP SINGLE LOCATION
NOMINAL THREAD SIZE: 0.164 INCHES
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT: 6.000 MINIMUM AT 200 PCT AND 60.000 MAXIMUM AT 200 PCT SINGLE LOCATION
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED: WEATHERPROOF
TRIP RELEASE AMBIENT TEMP RATING: 25.0 DEG CELSIUS NOMINAL SINGLE LOCATION
UNPACKAGED UNIT WEIGHT: 0.093 POUNDS NOMINAL
CASE MATERIAL: PLASTIC
THREAD SERIES DESIGNATOR: UNC
TERMINAL TYPE AND QUANTITY: 2 SCREW
New surplus with original packaging. Please see photos for more.
