Product Overview

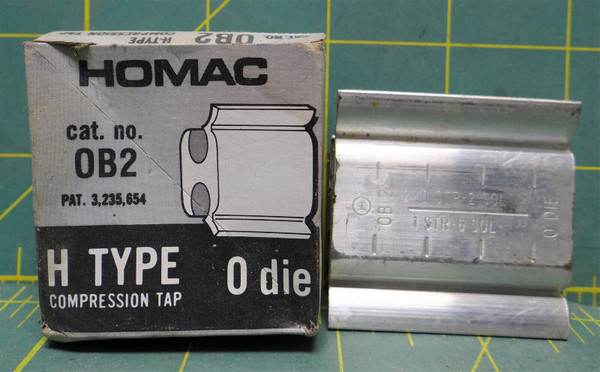

Thomas and Betts HOMAC OB2 H-Type H-Frame Compression Tap, 0 Die
- For combinations of aluminum-aluminum and aluminum-copper conductors
- Pass the requirements of ANSI C119.4
- Standard compression tools and dies install all sizes
- Seven Connector Program provides superior connector performance, lower connection costs and simplified installation procedures
- Fold-in tabs provide positive tab interlock as tool closes
- Field-proven ribbed design provides unparalleled connector/conductor contact, without distorting the conductor’s shape
- Made of 1350 aluminum alloy
- Pre-filled with an oxide inhibitor which is held captive in the rib/connection area
Wire Range Decimal (MM)Â Equivalent:
Groove A: 0.419-0.258 (50-25)
Groove B: 0.332-0.162 (35-10)
Groove A: 1/0-3 ACSR., 2/0-2 STR., 2 SOL.
Compressed Conductor:Â 1/0-3 ACSR., 2/0-2 STR
Groove B: 2-6 ACSR., 1-6 STR., 2-6 SOL.
Compress Conductor: 2-6 ACSR., 1-6 STR.
Compressions: Hand Tool 5, Hydraulic 2
Use H-Tap Cover No. C020B
New surplus. manufacturers packaging shows moderate to heavy wear. See photos for details.
