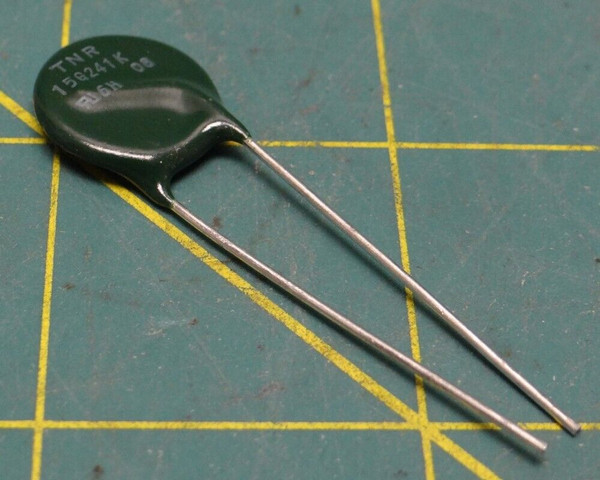

United Chemi-Con TNR-15G241K Metal Oxide Varistor, Bag of 100 Pieces

United Chemi-Con TNR-15G241K Metal Oxide Varistor, Bag of 100 Pieces


The G series is the standard metal oxide varistor series from UCC/NCC. These MOVs are available in a wide variety of voltages and sizes, which will make them ideal in most applications where a surge protector is needed. The G series is also ideal because of the variety of UL and CSA approvals.


G Series Specifications:
Operating Temperature Range: ?40 to ?85?C
Storage Temperature Range: ?50 to ?125?C
Maximum Voltage Range: 8 to 625VAC or 12 to 825VDC
Varistor Voltage: 22 to 470V at 0.1mA DC for Ø7mm; 15 to 1,000V at 1mA DC for Ø9mm to Ø23mm
Varistor Voltage Tolerance: .?10% (K)
Maximum Energy: 0.4 to 230 Joules at 2ms
Maximum Surge Current: 100 to 6,500A at 8 /20?s
Maximum Case Size ( D?H?T ): 8.0?11.0?5.0mm to 25.0?28.0?9.5mm
Agency Approvals: UL1414 and 1449; CSA 097864
