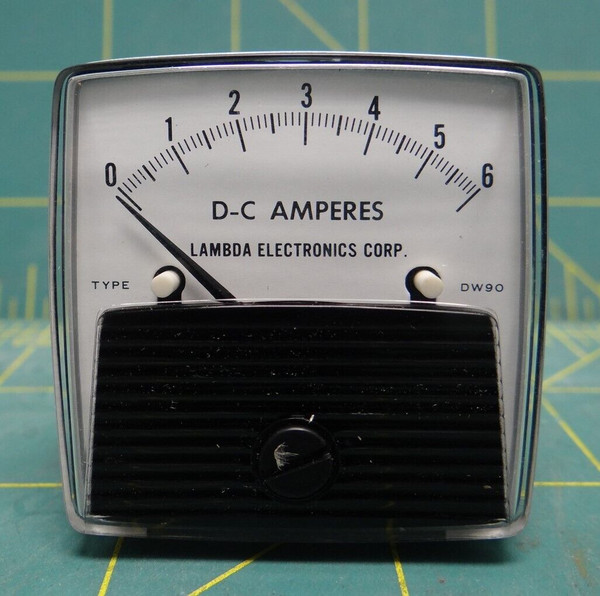

Veeco Instruments Inc. Lambda Electronics Division Ammeter, DC Amperes 0-6.0
PN: EDN60-042
NSN: 6625-00-930-9205
CIRCUIT CURRENT FOR WHICH DESIGNED: DC
OVERALL LENGTH: 1.540 INCHES MINIMUM AND
OVERALL LENGTH: 1.620 INCHES MAXIMUM
OVERALL HEIGHT: 1.832 INCHES NOMINAL
OVERALL WIDTH: 1.832 INCHES NOMINAL
SCALE DIVISION QUANTITY: 60 SINGLE INDICATOR SINGLE RANGE
MOUNTING STUD LENGTH: 0.375 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING FACILITY CENTERS: 1.855 INCHES NOMINAL
FURNISHED ITEMS AND QUANTITY: WASHER 2; HEX NUT 2; LOCK WASHER 2; STOP-NUT 2
INDICATOR TYPE: DIAL W/POINTER
INSTALLATION DESIGN: PANEL
MOUNTING ARRANGEMENT STYLE: TWO HOLE/STUD
SENSITIVITY RATING: 50.0 MILLIVOLTS
DIAL SCALE MARKING COLOR: BLACK SINGLE INDICATOR SINGLE RANGE
ACCURACY IN PERCENT: -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
PANEL FOR WHICH DESIGNED: MAGNETIC OR
PANEL FOR WHICH DESIGNED: NONMAGNETIC
METER DEPTH BEHIND MOUNTING FLANGE: 0.990 INCHES MINIMUM AND
METER DEPTH BEHIND MOUNTING FLANGE: 1.010 INCHES MAXIMUM
METER BODY DIAMETER BEHIND MOUNTING FLANGE: 1.700 INCHES NOMINAL
MOVEMENT TYPE: MOVING COIL, PERMANENT MAGNET
BACKGROUND COLOR: WHITE SINGLE INDICATOR SINGLE RANGE
POINTER COLOR: BLACK SINGLE INDICATOR SINGLE RANGE
MOUNTING FACILITY TYPE AND QUANTITY: 1 THREADED BODY AND
MOUNTING FACILITY TYPE AND QUANTITY: 2 THREADED STUD
SCALE GRADUATION TYPE: LINEAR SINGLE INDICATOR SINGLE RANGE
MEASUREMENT RANGE: 0.0 TO 6.0 AMPERES, DC SINGLE INDICATOR SINGLE RANGE
CIRCUIT CONSTRUCTION TYPE: NON-ELECTRONIC
MOUNTING STUD DIAMETER: 0.112 INCHES NOMINAL
SCALE SELECTION METHOD: TERMINAL
FEATURES PROVIDED: INTERNAL SHUNTING AND
FEATURES PROVIDED: KNIFE EDGE POINTER AND
FEATURES PROVIDED: ZERO ADJUSTER
MOVEMENT SUSPENSION METHOD: TAUT BAND
CIRCUIT ATTACHMENT METHOD AND QUANTITY: 2 SOLDER LUG AND
CIRCUIT ATTACHMENT METHOD AND QUANTITY: 2 THREADED STUD
MATERIAL: PLASTIC
NUCLEAR HARDNESS CRITICAL FEATURE: NON-HARDENED
STYLE DESIGNATOR: RECTANGULAR FLUSH MTG
FSC APPLICATION DATA: TEST SET,ELECTRONIC EQUIPMENT
